Vials: collect side-view contrast from end illumination
The real source result shows small bright features in a vial against a dark field. Light enters from an end while the camera views the side, an arrangement worth testing when direct background light masks the feature of interest.
Separate a bright-feature image from a verified particle decision.
Real camera capture
- Proposed light housing (spec)Ø24 × 62 mm
- EvidenceReal application-lab captures
- Camera (proposed)2448 × 2048 monochrome
- Field (derived proposal)84.46 × 70.66 mm derived from printed 0.1x magnification
Explore it in 3D
Camera and available lens CAD are published models. Light envelopes and the station base/height use printed dimensions. Part shapes, brackets, holders, shielding and spacing are illustrative; they are not reconstructions of a source part or a complete mechanically validated assembly. Light paths explain the proposed arrangement and do not simulate optical performance. The proposed field is derived from the printed camera pixel dimensions and the stated lens magnification/working-distance pair, not measured from the source capture.

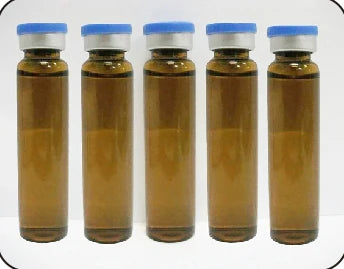

Lighting application-lab image sheet
What the camera saw
Cropped from the source test sheet; original test annotations are retained. Captures are not generated or enhanced. Drag a comparison slider, or open any image full size.
The challenge
A transparent container, liquid and glass interfaces can all scatter or reflect light. Bright features may come from particles, bubbles, glass marks or reflections, so their identity needs independent confirmation.
How it was solved
The image appears on the second-generation spot-light product page, but the exact source light model, colour and camera are not stated. The proposed white LS-SPT-0127 is a catalog choice, not a tested source SKU.
The source illustration stands the vial upright with a side-view camera. The proposed bench rotates that optical relationship: the vial lies horizontally in an illustrative cradle, the camera views its side from above and the spot enters through an end.
Why it works
- 1
Observing away from the direct illumination axis can separate scattered light from the main transmitted beam.
- 2
The source annotations highlight bright features but do not identify their physical cause or report a validated particle size. The image is not a sterility, pharmaceutical release or contamination certification.
Lighting application-lab image sheet
Evidence you can inspect

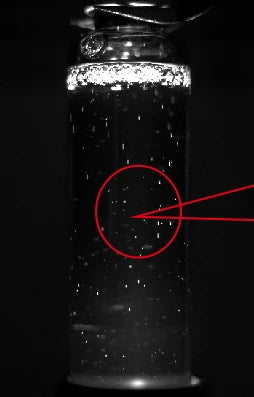

The supplied side-view capture contains small bright features against a dark vial field.
The source gives a spot-light arrangement and annotated result but no exact source model, colour, camera, liquid, particle identity or size limit.
An application-lab lighting demonstration, not a customer deployment or a qualified production inspection. Proposed camera, lens, fixture and scene spacing require a fresh trial. Source observations do not establish a defect-size limit, accuracy guarantee or production false-call rate.
From image contrast to a production decision
What to validate on your part
- 01
Identify the feature
Use independently characterized particles, bubbles, clean glass and acceptable reflections.
- 02
Check the rotated fixture
Verify end coupling, support reflections, shielding and repeatable vial pose in the proposed horizontal arrangement.
- 03
Validate the real product
Measure feature visibility and false calls across the actual vial, contents and process variation; retain any required independent product-release tests.
From the demo to your test bench
Parts in this setup
LightOur pick
LS-SPT-0127

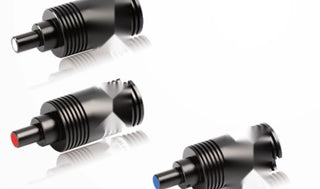

6 mm Second generation spot light (LS-SPT-0127)
