Spot lights
6 mm Second generation spot light (LS-SPT-0127)
Model LS-SPT-0127
- ColourRed, Green, Blue, White
- Power3 W
- Adapted controllerConstant current controller

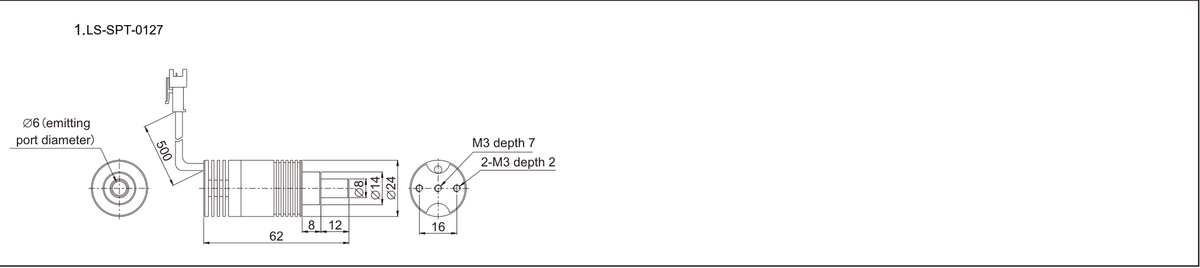

- Cable500 (drawing)
$229.00
Ships in 2-3 weeks
0.2 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
High-power LED spot light with a simplified optical design giving higher luminance than the LS-SPT-S45 series, in a more compact body.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SPT-0127 |
|---|---|
| Customizable | multi-area control, colour and colour temperature, cable length, installation method, power |
| Body dia. (mm) | 24 |
Interfaces and I/O
| Cable (mm) | 500 (drawing) |
|---|---|
| Extension cable options | PVC extension cable (high flexibility, bending and heat resistant, for use inside equipment) or high-flexibility extension cable (harder and more abrasion resistant than PVC, for drag-chain production lines) |
Light
| Custom wavelengths | UV & IR light can be customized as required |
|---|---|
| Emitting port dia. (mm) | 6 |
Environment and compliance
| Operating temperature | 0-50 °C |
|---|---|
| Operating humidity | 20-85% (non-condensing) |
| Lifespan | 50000 h (to 50% of factory-default luminance) |
Electrical
| Power | 3 W |
|---|---|
| Adapted controller | Constant current controller |
| Power (W) | 3 |
Mechanical
| Weight (g) | 37 |
|---|---|
| Length (mm) | 62 |
| Mounting | M3 depth 7, 2-M3 depth 2 |
