Capsule-pack powder appearance: inspect around the pocket as well as the capsule
The source capture shows a capsule pack with different colour and texture near one pocket. It is a lighting example for powder-leakage appearance, while any actual leak or package-integrity conclusion needs its own validated evidence.
Inspect the pocket surroundings, and validate any leak conclusion by the required method.

Real camera capture
- Light in sourceLS-FCS100 · white
- EvidenceReal application-lab image
- Imaging kitCamera, lens and fixture proposed
- AcceptanceValidate on representative parts
Lighting application-lab catalog capture
What the camera saw
Cropped from the source test sheet; original test annotations are retained. Captures are not generated or enhanced. Drag a comparison slider, or open any image full size.
The challenge
Capsules, pocket walls and reflective packaging produce different highlights in the same image.
The trial must distinguish actual powder deposits from accepted packaging texture and pocket geometry.
How it was solved
The source identifies the white flat coaxial light and labels the task capsule powder-leakage inspection. The image does not independently establish the cause of the visible pocket variation.
Define inspection regions around the actual pocket edges and test known powder deposits with the proposed colour camera. The bench kit does not constitute a validated package-inspection process.
Why it works
- 1
A broad reflected-light arrangement can be tried to preserve both capsule boundaries and surrounding material appearance.
- 2
Visible powder-like contrast cannot by itself establish a leak path, seal integrity or the contents of a capsule.
Lighting application-lab catalog capture
Evidence you can inspect

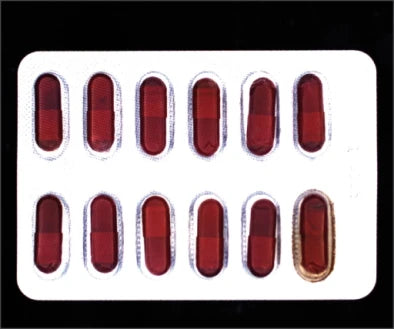

The pack, capsule outlines and a different-looking region around the lower-right pocket are visible.
The catalog captions this powder-leakage inspection on capsules under a white flat coaxial light.
One application image, without independently labelled powder, leak-test results, minimum deposit size or detection statistics. No product-quality or package-integrity certification is implied.
From image contrast to a production decision
What to validate on your part
- 01
Use verified deposits
Prepare labelled powder samples and accepted packaging texture at representative pocket positions.
- 02
Check reflections and colours
Vary capsule colour, foil or plastic finish and permitted pack tilt.
- 03
Validate the required package test
Keep visual deposit detection separate from any required leak or seal-integrity acceptance.
From the demo to your test bench
Parts in this setup
LightTested
LS-FCS100
100 x 100 mm Flat coaxial light (LS-FCS100)
White LS-FCS100 explicitly identified in the capsule powder-leakage example. Printed 100 × 100 mm light-guide area and 140 × 140 × 10 mm outer housing.
$289.00
In proposed setup
CameraOur pick
MV-CS050-10GC
Hikrobot MV-CS050-10GC 5MP Area Scan Camera, GigE, IMX264, Color, Basic
5 MP colour global-shutter camera proposed to retain colour information. Confirm colour processing and sampling on the actual application.
$739.00
In proposed setup
LensOur pick
LS-KF1628M-ML
16mm, F2.8, 1.1", C-mount, Macro lens (52 mm (-0.25X) to 546 mm (-0.03X)) (LS-KF1628M-ML)
Proposed 16 mm C-mount macro lens at its printed 0.1x magnification / 152 mm working-distance pair. The proposed 2448 × 2048 sensor with 3.45 µm pixels gives a derived 84.456 × 70.656 mm field; confirm focus, coverage and residual distortion on the real sample.
$319.00
In proposed setup
Camera test stationOur pick
LS-BT-XZ-G-6-6045
Camera stand with XZ adjustment and glass tray, height 600 mm (LS-BT-XZ-G-6-6045)
600 mm column, 600 × 450 mm breadboard, XZ adjustment, glass tray and two lighting holders as listed. Proposed bench fixture; confirm loads, travel and camera/lens clamps.
$359.00
In proposed setup
"Tested" identifies the part named in the source. "Our pick" is a proposed alternative or supporting part. Confirm colour, optics, controllers, power supplies, cables and mounting before ordering.
The set-up
| Tested light | LS-FCS100, white |
|---|---|
| Source camera / lens | Not specified in the source image caption; proposed parts below |
| Proposed lens point | 0.1x at 152 mm, printed lens pair |
| Derived proposed field | 84.456 × 70.656 mm = sensor dimensions / 0.1x; not a source test field |
| Light-guide area (printed) | 100 × 100 mm |
| Housing (printed) | 140 × 140 × 10 mm |
| Mounting (proposed) | LS-BT-XZ-G-6-6045; 600 mm column, 600 × 450 mm base, glass tray and two included lighting holders |
Mount the optics with intent
The station is an optical test bench, with its two lighting holders included in the catalog listing. The 3D column and base follow the published height and footprint. Carriages, clamps and part supports are schematic: confirm camera screw pattern, lens support, light fasteners, permissible load and actual travel before ordering.
Complete the electrical system
Select a controller against the exact light voltage, drive mode and power, then confirm camera data/power/I/O cables and a suitable PC. These are not silently added to the proposed optical kit.
Build this system
Start from this setup, adapt it to your part.
The configurator opens with this study's camera, lens, light and station picked. Swap any part, check fit and price, then buy or ask for a quote.
Camera and available lens CAD are published models. Lens and light envelopes use printed dimensions. The linked station uses its published base size and column height; carriage, brackets, fittings, parts and spacing are illustrative. Confirm load, travel, fasteners and clearances before ordering. Light paths explain the arrangement and do not simulate optical performance. Representative part geometry is illustrative, not reconstructed inspection evidence. The specimen and lighting angle are representative, not dimensions or settings recovered from the source capture.
