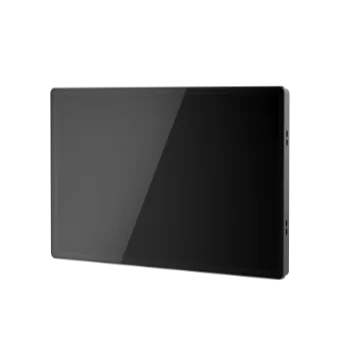

Hikrobot MV-VT3100-128G40-NN VT3000 TouchScreen PC, G4900T, 8GB+128G SSD
Model MV-VT3100-128G40-NN
Hikrobot MV-VT3100-128G40-NN VT3000 TouchScreen PC, G4900T, 8GB+128G SSD. Adopts 8th generation Intel® CPU to offer strong performance. Supports 11-channel GPIO and easy to use.
Datasheet (PDF) - MV-VT3100-128G40-NNUser manual (PDF) - MV-VT3100-128G40-NNCAD: 3D STEP + 2D DXF (ZIP) - MV-VT3100-128G40-NN
Features
- Adopts 8th generation Intel® CPU to offer strong performance.
- Supports 11-channel GPIO and easy to use.
- Adopts GigE interfaces for stable data transmission.
- Built-in USB interface for on-site maintenance is optional.
- Full metal cover, solid and durable.
- Provides extended interface for HDD, Wi-Fi, etc.
- Supports countertop placement, rear and embedded mounting, and VESA standards.
Specifications
| Model | MV-VT3100-128G40-NN |
|---|---|
| Brand | Hikrobot |
| CPU | Intel® Celeron® G4900T |
| Memory | 8 GB |
| Storage | 128 GB SSD + 2 TB HDD, 128 GB SSD |
| Operating system | Unactivated Windows 10 |
| Display interface | HDMI interface × 1 (1920 × 1080) |
| Digital I/O | Digital-isolated input × 3; Opto-isolated output × 8 |
| Network interface | GigE interface × 4 |
| USB interface | USB 3.0 × 4 |
| Serial port | RS-232 × 4, supports switching to RS-485 and RS-422 |
| Power supply | 24 VDC |
| Power consumption | Typ. 120 W |
| Screen Size | 15.6 inches |
| Resolution | 1920 × 1080 |
| Display area | 344.16 mm × 193.59 mm |
| Backlight | LED |
| Backlight lifetime | 50000 hrs |
| Viewing angle | 89°(R) / 89°(L) / 89°(B) / 89°(T) |
| Contrast ratio | 1200:1 |
| Brightness | 500 cd/m2 |
| Touch type | Multi-point capacitive touch screen |
| Multi-touch | Touch supports with 10 points under Windows operating system |
| Touch times | 35 million times |
| Transmittance | ≥ 87% |
| Surface hardness | ≥ 6 H |
| Dimension | 390 mm × 240 mm × 65.8 mm (15.4" × 9.4" × 2.6") |
| Weight | Approx. 4.8 kg (10.6 lb.) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Certification | CE, KC |
| Shipping weight (estimated) | 6.82 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the VT3000 series TouchScreen PC series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| MV-VT3100-128G40-2T | G4900T, 8GB+128G SSD | Price on request | 2 in stock | View |
| MV-VT3300-128G40-NN | I3-8100T, 8GB+128G SSD | Price on request | 2 in stock | View |
| MV-VT3300-128G40-2T | I3-8100T, 8GB+128G SSD | Price on request | 4 in stock | View |
| MV-VT3500-128G40-NN | I5-8500T, 8GB+128G SSD | Price on request | 2 in stock | View |
| MV-VT3700-128G40-NN | I7-8700T, 8GB+128G SSD | Price on request | 5 in stock | View |
| MV-VT3700-128G40-2T | I7-8700T, 8GB+128G SSD | Price on request | 2 in stock | View |
| MV-VT3500-128G40-2T | I5-8500T, 8GB+128G SSD | Price on request | 4 in stock | View |
