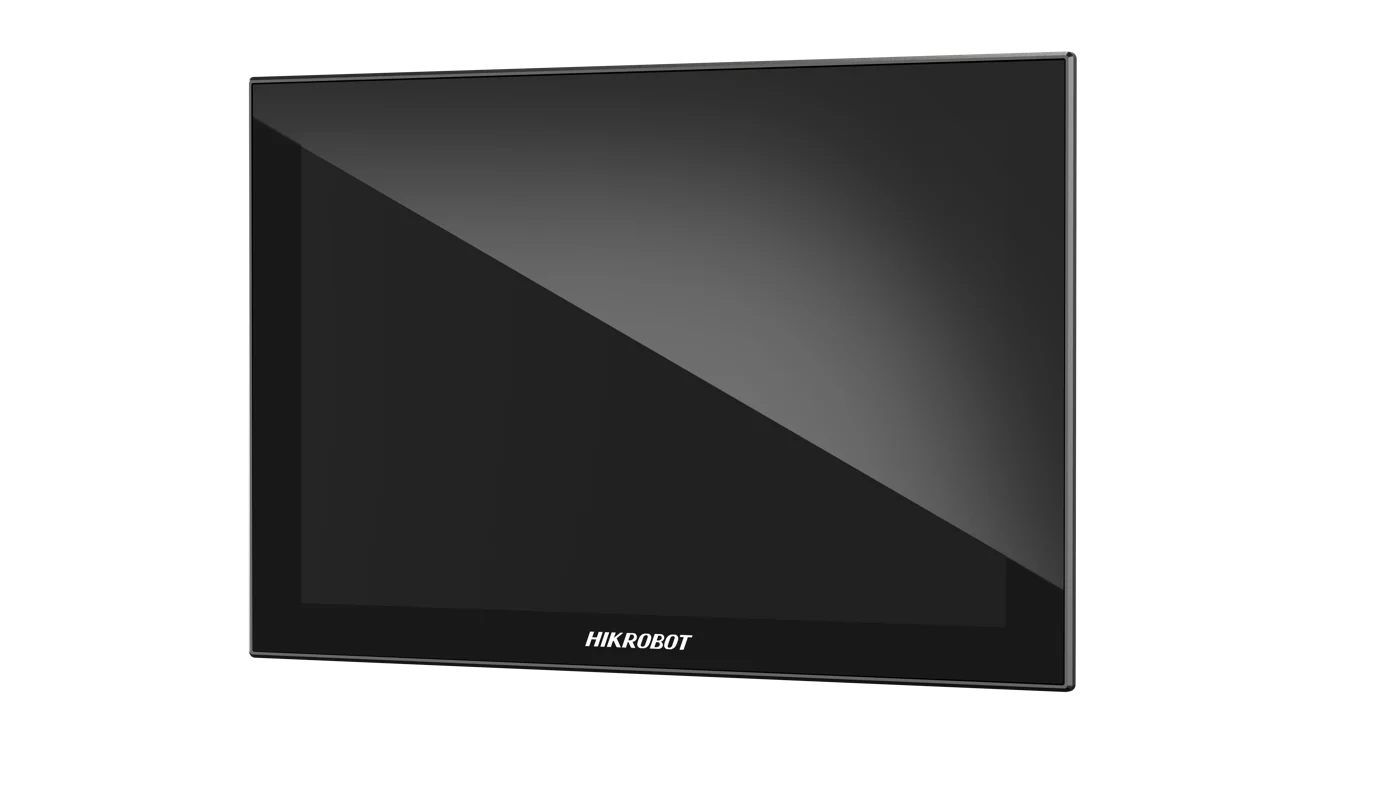

Hikrobot MV-VT2000-128G40-2T VT2000 Panel PC, J6412, 8GB+128G SSD+2T HDD
Model MV-VT2000-128G40-2T
Hikrobot MV-VT2000-128G40-2T VT2000 Panel PC, J6412, 8GB+128G SSD+2T HDD. Adopts Intel® Celeron® CPU J series to offer strong performance. Supports multi-channel IO and easy to use.
Datasheet (PDF) - MV-VT2000-128G40-2TUser manual (PDF) - MV-VT2000-128G40-2TCAD: 3D STEP + 2D DXF (ZIP) - MV-VT2000-128G40-2T
Features
- Adopts Intel® Celeron® CPU J series to offer strong performance.
- Supports multi-channel IO and easy to use.
- Adopts GigE interfaces for stable data transmission.
- Built-in USB interface for on-site maintenance is optional.
- Full metal cover, solid and durable.
- Supports countertop placement, embedded and wall mounting, and VESA standards.
Specifications
| Model | MV-VT2000-128G40-2T |
|---|---|
| Brand | Hikrobot |
| CPU | Intel® Celeron® CPU J6412 |
| Memory | 8 GB |
| Storage | 128 GB SSD + 2 TB HDD |
| Operating system | Unactivated Windows 10 2021H2 |
| Display interface | HDMI interface × 1 (1920 × 1080 @ 60 Hz) |
| Digital I/O | Supports up to opto-isolated input × 7 and opto-isolated output × 7 |
| Network interface | GigE interface × 4 |
| USB interface | USB 3.0 × 2; USB 2.0 × 2 |
| Serial port | RS-232 × 2, supports switching to RS-485 and RS-422. |
| Power supply | 24 VDC |
| Power consumption | Typ. 30 W |
| Screen Size | 10.1 inches |
| Resolution | 1280 × 800 |
| Backlight | LED |
| Backlight Lifetime | ≥ 30000 hrs |
| Viewing Angle | 85°(R)/ 85°(L)/ 85°(B)/ 85°(T) |
| Contrast Ratio | 800:1 |
| Brightness | 350 cd/m2 (TYP) |
| Touch Type | Multi-point capacitive touch screen |
| Multi-touch | Touch supports with 10 points under Windows operating system |
| Touch Times | ≥ 35 million times |
| Transmittance | ≥ 85% |
| Surface Hardness | 6 H |
| Dimension | 255 mm × 170 mm × 63 mm (10.0" × 6.7" × 2.5") |
| Weight | Approx. 2 kg (10.6 lb.) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) (wind speed 0.7 m/s); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Certification | CE, KC |
| Shipping weight (estimated) | 2.90 kg |
