Smart Camera Standalone Module
Smart cameras & vision sensors

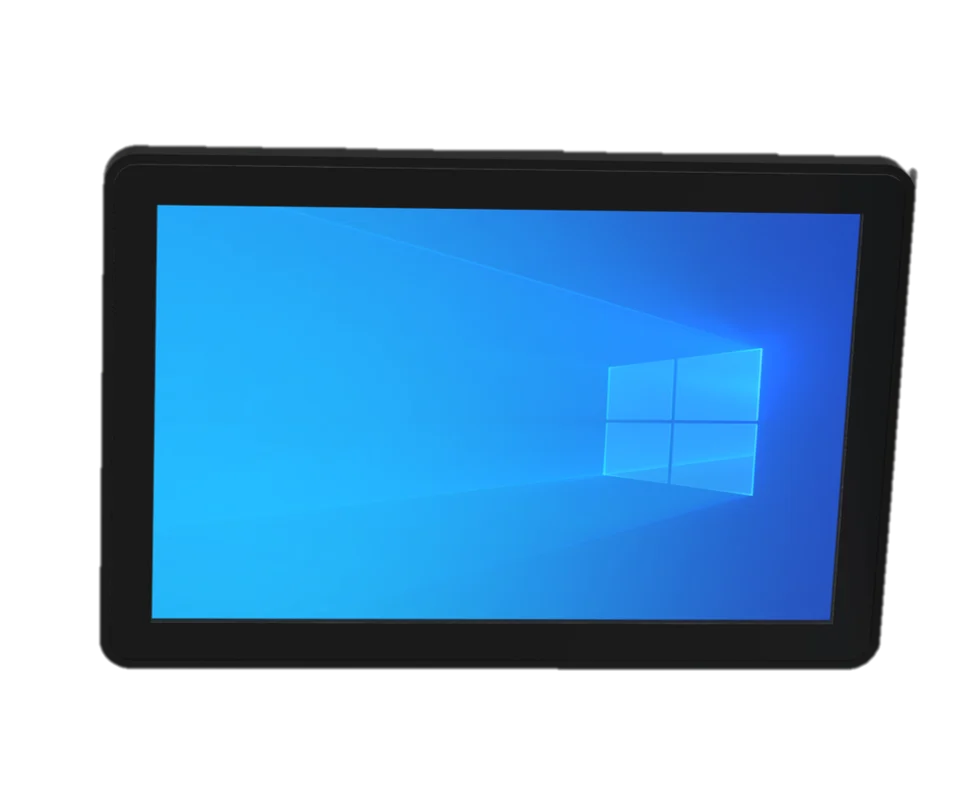

Hikrobot MV-VT1010C-8G-128G-121-X VT1010C all-in-one, 8 GB RAM, 128 GB storage, 1× Gigabit Ethernet port
Model MV-VT1010C-8G-128G-121-X
Hikrobot MV-VT1010C-8G-128G-121-X VT1010C all-in-one, 8 GB RAM, 128 GB storage, 1× Gigabit Ethernet port. Intel Jasper Lake N5095 processor for strong computing performance Supports 10/100/1000M Ethernet
Features
- Intel Jasper Lake N5095 processor for strong computing performance
- Supports 10/100/1000M Ethernet
- M.2 2230 slot for adding Wi-Fi and Bluetooth modules
- Capacitive touchscreen with 10-point touch
- Wake-on-LAN, watchdog and auto power-on
Specifications
| Model | MV-VT1010C-8G-128G-121-X |
|---|---|
| Brand | Hikrobot |
| CPU | Intel Jasper Lake N5095 |
| Memory | 8 GB |
| Storage | 128 G |
| Operating system | Windows 10 (default), Not activated |
| Display interface | 1× HDMI port |
| Network interface | 1× Gigabit Ethernet ports |
| USB Interface | 2× USB 3.0 ports, 2× USB 2.0 ports |
| Serial Port | 1× RS-232 serial port, Switchable to RS-485 |
| Audio interface | 2× 3.5 mm audio jack, Line-out + Mic-in supported |
| Extended interface | 1× M.2 2230 slot, Expandable with Wi-Fi and Bluetooth modules |
| Power supply | 12V DC |
| Power consumption | 16.2 W |
| Screen Size | 10.1 inches |
| Resolution | 1280 × 800 |
| Backlight | LED |
| Backlight lifetime | 25000 hrs |
| Viewing angle | 85°(R)/ 85°(L)/ 85°(B)/ 85°(T) |
| Contrast ratio | 1000:1 |
| Brightness | 300 cd/m2 |
| Touch type | 10-point capacitive touchscreen |
| Touch times | 5000 × 10⁴ cycles |
| Transmittance | ≥81% |
| Surface hardness | 6 H |
| Dimension | 249.83 mm × 168.43 mm × 38.95 mm |
| Weight | 1.35 kg |
| Temperature | Operating temperature: 0 to 50 °C, Storage temp.: -20 to 60 °C |
| Humidity | Operating humidity: 10% to 90% RH (non-condensing), Storage humidity: 5% to 95% RH (non-condensing) |
| Shipping weight (estimated) | 1.99 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Smart Camera Standalone Module series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| MV-VT1010C-4G-128G-121-X | 1 MP | Price on request | 3 in stock | View |
