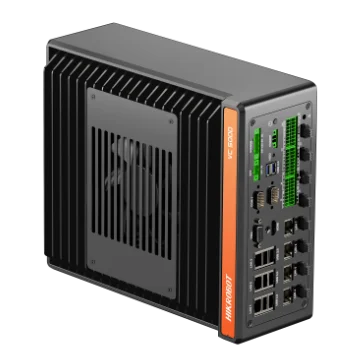

Hikrobot MV-VC5314-256G70-NN VC5000 Vision Controller, 12th-I3, 16GB+256G SSD, Unsupported PCIE
Model MV-VC5314-256G70-NN
Hikrobot MV-VC5314-256G70-NN VC5000 Vision Controller, 12th-I3, 16GB+256G SSD, Unsupported PCIE. Adopts 12th generation Intel® CPU to offer strong performance. Supports 32-channel GPIO and some models support NPN/PNP switching for output.
Features
- Adopts 12th generation Intel® CPU to offer strong performance.
- Supports 32-channel GPIO and some models support NPN/PNP switching for output.
- Adopts GigE interfaces for stable data transmission.
- Supports multiple-channel light source for synchronous control.
Specifications
| Model | MV-VC5314-256G70-NN |
|---|---|
| Brand | Hikrobot |
| CPU | Intel® CoreTM i3-12100 |
| Memory | 16 GB |
| Storage | 256 GB SSD |
| GPU | Intel® UHD Graphics 730 |
| Operating system | Unactivated Windows 10 |
| Chip | H610 |
| Video output | HDMI interface × 1, VGA interface × 1; Supports independent display output at the same time; Max. resolution 1920 × 1080 @ 60 Hz |
| Digital I/O | Opto-isolated input × 8; Opto-isolated output × 12 ( supports NPN/PNP switching); Digital-isolated low-side driver output × 8; Non-isolated bi-directional differential I/O × 4 |
| Network interface | GigE interface × 7, including interface for PoE × 4 |
| USB Interface | USB 2.0 × 4; USB 3.0 × 4; Built-in USB 2.0 × 1 |
| Serial Port | RS-232 × 2 by default, supports switching to RS-485 and RS-422 |
| Light interface | 24 VDC constant voltage × 8; (Max. power consumption of single channel is 72 W, total max. power consumption 190 W) |
| Extended interface | SATA 3.0 interface × 2 |
| Power supply | 24 VDC (4-pin interface for system power supply) |
| Power consumption | Typ. 264 W (4-pin interface for system power supply) |
| Dimension | 302.3 mm × 248 mm × 105.2 mm (11.9" × 9.8" × 4.1") |
| Weight | Approx. 6 kg (13.2 lb.) |
| Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Certification | CE, KC |
| Shipping weight (estimated) | 8.50 kg |
