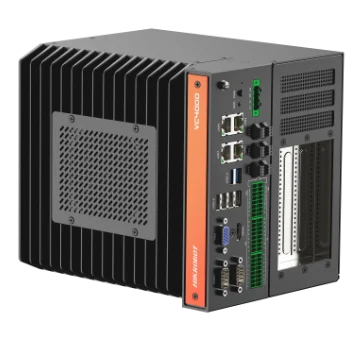

Hikrobot MV-VC4712-256G10-2TH Ultra 7 255H, 16G×2+256GSSD+2THDD, PCIe expansion, Without VM license key
Model MV-VC4712-256G10-2TH
Hikrobot MV-VC4712-256G10-2TH Ultra 7 255H, 16G×2+256GSSD+2THDD, PCIe expansion, Without VM license key. High-performance Intel Core Ultra Series 2 (Arrow Lake-H) processor 2 DDR5 non-ECC SO-DIMM memory slots
Datasheet (PDF, Chinese) - MV-VC4712-256G10-2THUser manual (PDF, Chinese) - MV-VC4712-256G10-2THCAD: 3D STEP + 2D DXF (ZIP) - MV-VC4712-256G10-2TH
Features
- High-performance Intel Core Ultra Series 2 (Arrow Lake-H) processor
- 2 DDR5 non-ECC SO-DIMM memory slots
- Expansion slots: 1 × PCIe 4.0 x8, 2 × PCIe 4.0 x4
- 4 Intel Ethernet ports, 2 USB3.0 ports, 2 serial ports
- HDMI + VGA display outputs with independent dual displays
- Supports Windows 11
- Wall-mountable to save space
Specifications
| Model | MV-VC4712-256G10-2TH |
|---|---|
| Brand | Hikrobot |
| CPU | Intel® CoreTM Ultra 7 processor 255H |
| Memory | 2 × DDR5 6400 MHz non-ECC SO-DIMM memory slots; Up to 48 GB per slot, Up to 96 GB with two slots |
| Storage | 1 × 7-pin SATA3.0, 1 × M.2 SATA 2280, 1 × M.2 NVMe 2280; 1 × 2.5”/3.5” drive bay |
| GPU | Intel® ArcTM 140T GPU |
| Operating system | Windows 11 64-bit (not activated) |
| Video output | Independent dual display supported; 1× HDMI port, Up to 1920 × 1080 @ 60 Hz; 1× VGA port, Up to 1920 × 1080 @ 60 Hz |
| Digital I/O | 18 digital isolated inputs supported; 18 isolated digital outputs |
| Network interface | 4× Gigabit Ethernet ports; PoE power supported, 15 W per port, 25 W total across 4 ports |
| USB Interface | 4× USB 2.0 ports; 2× USB 3.0 ports; 1 × internal USB2.0 port |
| Serial Port | 2 × configurable RS-232/RS-422/RS-485 |
| Light interface | SMR-03V-BC female; 6-channel 24 V constant-voltage light drive, Max. power per channel: 72 W, Max. power (4 channels): 110 W |
| Extended interface | 1× PCIe 4.0 x8 slot, 2× PCIe 4.0 x4 slot |
| Encryption method | MV-VC47**-**6-**: VM6200pro encryption supported; MV-VC47**-**0-**: encryption not supported |
| Power supply | 24 VDC |
| Power consumption | 200 W (excluding light) |
| Dimension | 171.4 mm × 228.3 mm × 200.0 mm |
| Weight | Approx. 5.5 kg |
| Temperature | Operating temperature: 0°C to 50°C; Storage temperature: -30°C to 70°C |
| Humidity | 20% to 80% RH (non-condensing) |
| Certification | CE, KC |
| Shipping weight (estimated) | 7.80 kg |
