Home / Computers / Vision controllers / VC3000 series Vision Controller

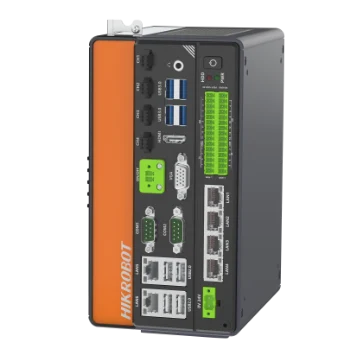

Hikrobot MV-VC3304X-128G66 VC3000X vision controller, 12th-I3, 16GB+128G SSD+2T, No PoE, PCIe expansion supported, Incl. VM6200Pro license

Vision controllers

Hikrobot MV-VC3304X-128G66 VC3000X vision controller, 12th-I3, 16GB+128G SSD+2T, No PoE, PCIe expansion supported, Incl. VM6200Pro license

Model MV-VC3304X-128G66

Hikrobot MV-VC3304X-128G66 VC3000X vision controller, 12th-I3, 16GB+128G SSD+2T, No PoE, PCIe expansion supported, Incl. VM6200Pro license. Desktop-class Intel Gen 12 CPU for powerful computing performance Extensive expansion slots for common machine-vision image acquisition interfaces, with stable performance

Price on request
3.04 kg shipping weight · Ships in 2-3 weeks
  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF, Chinese) - MV-VC3304X-128G66User manual (PDF, Chinese) - MV-VC3304X-128G66CAD: 3D STEP + 2D DXF (ZIP) - MV-VC3304X-128G66

Features

  • Desktop-class Intel Gen 12 CPU for powerful computing performance
  • Extensive expansion slots for common machine-vision image acquisition interfaces, with stable performance
  • 24 GPIO inputs/outputs; outputs switchable between NPN and PNP
  • GigE port for fast, stable image transmission

Specifications

ModelMV-VC3304X-128G66
BrandHikrobot
CPUIntel® CoreTM i3-12100
Memory8 GB×2
Storage128 GB SSD + 2 TB HDD
GPUIntel® HD Graphics 730
Operating systemUnactivated Windows 10
Encryption methodVM6200Pro license
Video output1× HDMI port, 1× VGA port; Simultaneous independent display output supported; HDMI: up to 1920 × 1080 @ 60Hz, VGA: up to 1920 × 1440 @ 60Hz
Digital I/O8 digital isolated inputs supported; 16 opto-isolated outputs supported (NPN/PNP switchable)
Network interface6× Gigabit Ethernet ports
USB Interface4× USB 2.0 ports; 4× USB 3.0 ports
Serial Port2× full-function RS-232, RS-485/RS-422 switchable
Light interface4-channel 24 V constant-voltage light drive, Max. power per channel: 72 W, Max. power (4 channels): 80 W
Extended interface1× PCIe 3.0 x16 slot
Power supply24 VDC
Power consumption144 W
Dimension161.4 mm × 208.5 mm × 105.5 mm
WeightApprox. 2.1 kg
Temperature0 ~ 50 °C
Humidity20% RH to 95% RH (no condensation)
CertificationCE, KC
Shipping weight (estimated)3.04 kg
Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the VC3000 series Vision Controller series

ModelSizePriceAvailability
MV-VC3202H-128G66G5400, 8GB+128G SSD+2T HDD Price on request 2 in stockView
MV-VC3301H-128G66I3-8100, 8GB+128G SSD Price on request 5 in stockView
MV-VC3304H-128G66I3-8100, 16GB+128G SSD Price on request 5 in stockView
MV-VC3501H-128G66I5-8500, 8GB+128G SSD Price on request 4 in stockView
MV-VC3504H-128G66I5-8500, 16GB+128G SSD+2T HDD Price on request 2 in stockView
MV-VC3701H-128G66I7-8700, 8GB+128G SSD Price on request 3 in stockView
MV-VC3704H-128G66I7-8700, 16GB+128G SSD+2T HDD Price on request 3 in stockView
MV-VC3101X-128G66G6900, 8GB+128G SSD Price on request 2 in stockView
MV-VC3102X-128G66G6900, 8GB+128G SSD+2T HDD Price on request 5 in stockView
MV-VC3201X-128G66G7400, 8GB+128G SSD Price on request 5 in stockView
MV-VC3202X-128G66G7400, 8GB+128G SSD+2T HDD Price on request 4 in stockView
MV-VC3301X-128G6612th-I3, 8GB+128G SSD Price on request 3 in stockView
MV-VC3501X-128G6612th-I5, 8GB+128G SSD Price on request 2 in stockView
MV-VC3701X-128G6612th-I7, 8GB+128G SSD Price on request 4 in stockView
MV-VC3704X-128G6612th-I7, 16GB+128G SSD+2T HDD Price on request 5 in stockView
MV-VC3504X-128G6612th-I5, 16GB+128G SSD+2T HDD Price on request 3 in stockView
MV-VC3705H-128G60I7-8700, 16GB+128G SSD Price on request 3 in stockView
MV-VC3305H-128G60I3-8100 Price on request 5 in stockView
MV-VC3306H-128G60I3-8100 Price on request 2 in stockView
MV-VC3706H-128G60I7-8700 Price on request 2 in stockView
MV-VC3705H-256G60I7-8700 Price on request 4 in stockView
MV-VC3706H-256G60I7-8700 Price on request 4 in stockView
MV-VC3705H-512G60I7-8700 Price on request 2 in stockView
MV-VC3505X-128G60i5-12400 Price on request 2 in stockView

See all 113 models in the VC3000 series Vision Controller series
