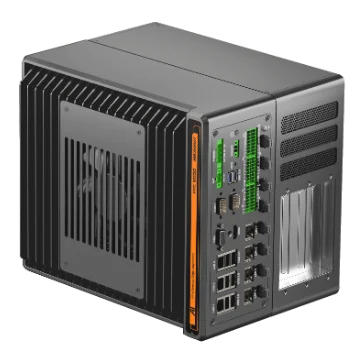

Hikrobot MV-VAC5724-256G02 AI inference terminal VC5724 dual card
Model MV-VAC5724-256G02
Hikrobot MV-VAC5724-256G02 AI inference terminal VC5724 dual card. Desktop-class Intel® CPU for powerful multithreaded parallel computing Mid-to-high-performance, low-power inference GPU that works seamlessly with VM AI
Features
- Desktop-class Intel® CPU for powerful multithreaded parallel computing
- Mid-to-high-performance, low-power inference GPU that works seamlessly with VM AI
- Supports a variety of interfaces, including Ethernet, I/O, serial and light
- Paired with full-featured VM software: extensive traditional VM algorithms, deep learning and edge learning
Specifications
| Model | MV-VAC5724-256G02 |
|---|---|
| Brand | Hikrobot |
| CPU | Intel® Core™ i7-12700 processor, 12 cores, 20 threads |
| Memory | 16 GB, 2 × DDR5 SO-DIMM memory slots, Up to 32 GB per module, Up to 64 GB |
| Storage | 256 GB M.2 SATA 2280 SSD; 2 TB 3.5-inch 5400 rpm HDD |
| GPU | AI inference card 1070D × 2; Video memory: 8 GB GDDR4X × 2; Power: 25 W; Compute: INT8/UINT8 TC: 70 TOPS |
| Network interface | GigE interface × 7, including interface for PoE × 4 |
| USB Interface | 4 × external USB2.0 ports, 4× USB 3.0 ports; Built-in 1× USB 2.0 port |
| Light interface | 8-channel 24 V constant-voltage light driver (separate power required), Max. power per channel: 72 W, 8 channels, max. power 190 W |
| Serial Port | 2 × RS-232 by default, Configurable as RS-485/RS-422 |
| Digital I/O | 8 opto-isolated inputs supported; 12 opto-isolated outputs supported (NPN/PNP switchable), 8 digitally isolated low-side driver outputs; 4 non-isolated bidirectional differential I/O supported |
| Video output | HDMI interface × 1, VGA interface × 1; Supports independent display output at the same time; Max. resolution 1920 × 1080 @ 60 Hz |
| Extended interface | 2 × SATA3.0, 1 × M.2 NVME, 1 × PCIe x16, 1 × PCIe x8 expansion slots |
| Task types | Supports all VM traditional algorithms; Supports all VM edge-learning (CPU); Supports deep learning GPU and CPU modules |
| AI parallel processing | Parallel processing of multiple AI inference tasks, Significant acceleration |
| AI capabilities | Object detection, Character location, Character recognition, Single-character detection, Image classification, Instance segmentation, Image segmentation/fast image segmentation, Unsupervised segmentation, etc. |
| Power supply | 24 V DC |
| Power consumption | 314 W (4-pin connector, system power) + 232 W (2-pin connector, auxiliary power for PCIe card, may be left unconnected if PCIe card auxiliary power is not used) |
| Installation method | Desktop or wall mounting |
| Dimension | 302.3 mm × 248 mm × 210 mm |
| Weight | Approx. 7.6 kg |
| Temperature | 0 ~ 45 °C |
| Humidity | 20% RH to 95% RH (no condensation) |
| Certification | CE, KC |
| Shipping weight (estimated) | 10.74 kg |
