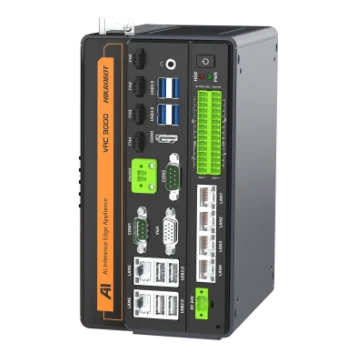

Hikrobot MV-VAC3504H-128G01 AI inference terminal 3504H single card
Model MV-VAC3504H-128G01
Hikrobot MV-VAC3504H-128G01 AI inference terminal 3504H single card. Desktop-class Intel® CPU for powerful multithreaded parallel computing Mid-to-high-performance, low-power inference GPU that works seamlessly with VM AI
Features
- Desktop-class Intel® CPU for powerful multithreaded parallel computing
- Mid-to-high-performance, low-power inference GPU that works seamlessly with VM AI
- Supports a variety of interfaces, including Ethernet, I/O, serial and light
- Paired with full-featured VM software: extensive traditional VM algorithms, deep learning and edge learning
Specifications
| Model | MV-VAC3504H-128G01 |
|---|---|
| Brand | Hikrobot |
| CPU | Intel® Core™ i5-8500 processor, 6 cores, 6 threads |
| Memory | 2*8 GB, 2 × DDR4 SO-DIMM memory slots, Up to 16 GB per module, Up to 32 GB |
| Storage | 128 GB M.2 SATA 2280 SSD; 2 TB 2.5-inch 5400 rpm HDD |
| GPU | AI inference card 1070D; Video memory: 8 GB GDDR4X; Power: 25 W; Compute: INT8/UINT8 TC: 70 TOPS |
| Network interface | 6× Gigabit Ethernet ports |
| USB Interface | 4 × external USB2.0 ports, 4× USB 3.0 ports1; Built-in 1× USB 2.0 port |
| Light interface | 4-channel 24 V constant-voltage light driver (separate power required), Max. power per channel: 72 W, Max. power, 4 cards: 80 W |
| Serial Port | 2 × RS-232 by default, Configurable as RS-485/RS-422 |
| Digital I/O | 8 digital isolated inputs supported; 16 opto-isolated outputs supported (NPN/PNP switchable) |
| Video output | HDMI interface × 1, VGA interface × 1; Supports independent display output at the same time; Max. resolution 1920 × 1080 @ 60 Hz |
| Task types | Supports all VM traditional algorithms; Supports all VM edge-learning (CPU); Supports deep learning GPU and CPU modules |
| AI parallel processing | Parallel processing of multiple AI inference tasks, but no parallel acceleration |
| AI capabilities | Object detection, Character location, Character recognition, Single-character detection, Image classification, Instance segmentation, Image segmentation/fast image segmentation, Unsupervised segmentation, etc. |
| Power supply | 24 V DC |
| Power consumption | 150 W |
| Installation method | Desktop or wall mounting |
| Dimension | 161.4 mm × 208.5 mm × 105.5 mm |
| Weight | Approx. 2.2 kg |
| Temperature | 0 ~ 45 °C |
| Humidity | 20% RH to 95% RH (no condensation) |
| Certification | CE, KC |
| Shipping weight (estimated) | 3.18 kg |
