Vision controllers

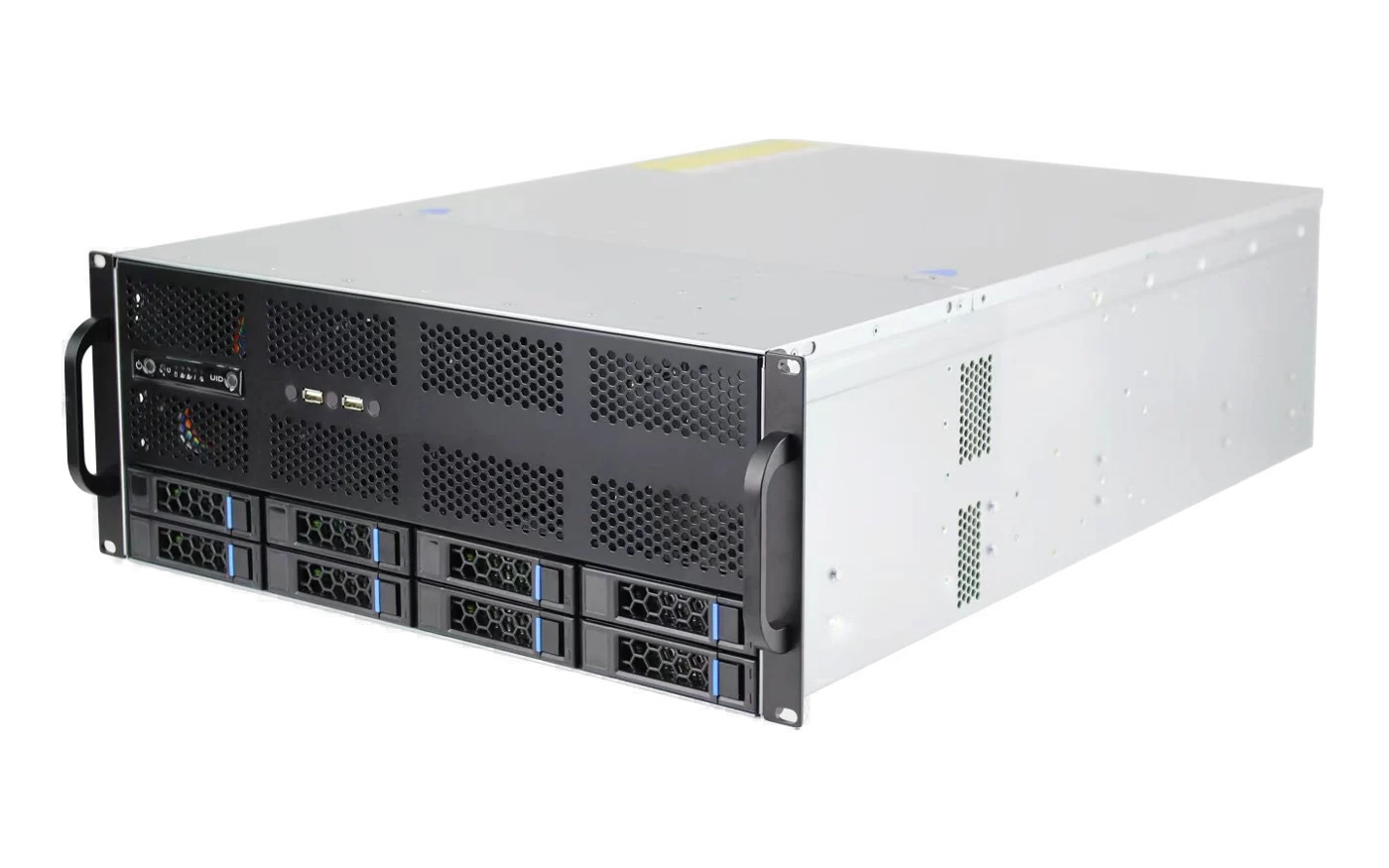

Hikrobot MV-TS1002-128GU-512G8TR10 AI training server 1000 dual-GPU
Model MV-TS1002-128GU-512G8TR10
Hikrobot MV-TS1002-128GU-512G8TR10 AI training server 1000 dual-GPU. Server-grade CPU supports online annotation by 20 users, model conversion and other centralized management operations Mid-to-high-performance GPU handles concurrent multi-user model training and validation; compatible with deep-learning training for smart products
Features
- Server-grade CPU supports online annotation by 20 users, model conversion and other centralized management operations
- Mid-to-high-performance GPU handles concurrent multi-user model training and validation; compatible with deep-learning training for smart products
- RAID storage for data security; hot-swappable drives for physical data migration and flexible expansion
- Intel® GigE ports for fast, stable image data transfer
Specifications
| Model | MV-TS1002-128GU-512G8TR10 |
|---|---|
| Brand | Hikrobot |
| CPU | Intel® Core™ i9-13900 processor, 24 cores, 32 threads |
| Memory | 128 GB default; 4× DDR5 U-DIMM memory slots supported, 32 GB per module, Up to 128 GB |
| Storage | Supports 1 × 512 GB NVMe M.2 2280 Key-M SSD; Supports 4 × 4 TB enterprise SATA3.0 3.5" HDD (7200 rpm) in RAID 10; 4 reserved 3.5-inch hot-swap drive bays, Same interface as the HDD above |
| GPU | Compute card: NVIDIA TESLA L2×2; Capacity: 24 GB GDDR6X; Frequency: 6251 MHz; Bandwidth: 300 GB/s; Power: 75 W; Compute: INT8/FP8 TC 193 TFLOPS; FP16 TC 96.5 TFLOPS; TF32 48.3 TFLOPS; FP32 24.1 TFLOPS; Interface: PCIe Gen4 x16 (64 GB/s) |
| Network interface | 2× Gigabit Ethernet ports |
| USB Interface | 2 × front USB3.0 ports; 10 × rear USB3.0 ports |
| Serial Port | 4 rear RS-232 pin headers, 1 × RS-232/422/485 pin header |
| Projects | Unlimited |
| Training models | Unlimited |
| Training tasks | Up to 2 concurrent training tasks by default |
| Sub-account management | Up to 20 concurrent sub-accounts, Per-account permission policies and resource allocation |
| Dataset management | Max. images per dataset ≤ 100000; Single image size ≤ 100 MB; Max. single-image resolution < 100 MP; No size or quantity limits for other data types |
| Task types | Object detection supported, Image classification, Character training, Image retrieval, Instance segmentation, Anomaly detection, Image segmentation, Unsupervised learning and other tasks |
| Data labeling | Manual labeling supported, Collaborative multi-user labeling, Smart pre-labeling, Multi-task serial labeling |
| Model functions | Model training supported, Post-training validation, Model management and conversion, Models deployable to smart product platforms (e.g. VM, smart cameras). |
| Max. power consumption | 800 W |
| Power supply | 100 ~ 240V AC |
| Installation method | Cabinet type |
| Dimension | 650 mm × 437.5 mm × 176.5 mm(L*W*H) |
| Weight | Approx. 28.2 kg |
| Temperature | Operating temp.: 0 to 30 °C, Storage temp.: -20 °C to 60 °C |
| Humidity | 10% to 95% RH (non-condensing) |
| Shipping weight (estimated) | 39.58 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the AI Training Server series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| MV-TS1001-64GU-512G4TR10 | Price on request | 3 in stock | View | |
| MV-TS1004-256GR-960G16TR10 | Price on request | 3 in stock | View | |
| MV-TS1008-512GR-960G20TR10 | Price on request | 4 in stock | View |
