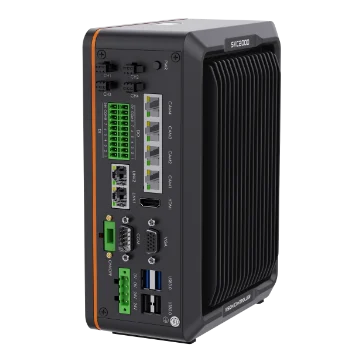

Hikrobot MV-SVC2506-16G60-128G 4 camera GigE ports, 1 configuration GigE port, 1 communication GigE port, 16 GB + 64 G EMMC +128 G SSD, 6100pro encryption supported
Model MV-SVC2506-16G60-128G
Hikrobot MV-SVC2506-16G60-128G 4 camera GigE ports, 1 configuration GigE port, 1 communication GigE port, 16 GB + 64 G EMMC +128 G SSD, 6100pro encryption supported. 8-core processor for powerful computing performance Embedded VM software: feature-rich and stable
Datasheet (PDF, Chinese) - MV-SVC2506-16G60-128GUser manual (PDF, Chinese) - MV-SVC2506-16G60-128GCAD: 3D STEP + 2D DXF (ZIP) - MV-SVC2506-16G60-128G
Features
- 8-core processor for powerful computing performance
- Embedded VM software: feature-rich and stable
- Compact size with rich interfaces
- Low-power, fanless, silent and stable
- 8-in/8-out GPIO and 4-channel light control for vision inspection
Specifications
| Model | MV-SVC2506-16G60-128G |
|---|---|
| Brand | Hikrobot |
| Function module | VisionMaster algorithm platform (without deep learning module) |
| Communication protocol | TCP, UDP, MODBUS, Serial Port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc. |
| CPU | 8-core ARM |
| Memory | 16 GB |
| eMMC | 64 GB |
| Storage | 128 GB SSD |
| Operating system | Linux OS |
| Display interface | 1× HDMI port, 1× VGA port; Up to 1920 × 1080 @ 30 Hz |
| Digital I/O | Opto-isolated input × 8; Opto-isolated output × 8 |
| Network interface | 6 × Gigabit Ethernet ports: LINK1 for VM configuration, LINK2 for communication with external devices, CAM1/2/3/4 for camera connection |
| USB Interface | USB 2.0 × 2; USB 3.0 × 2 |
| Serial Port | RS-232 × 1, supports switching to RS-485 or RS-422 |
| Light interface | Light interface with 24 VDC constant voltage × 4; (Brightness is adjustable. Max. current 3 A for single light interface, and total max. power consumption 80 W. Supports light mode switching between strobe and solid via external control) |
| Power consumption | 24 VDC |
| Power supply | 60 W (without light) |
| Dimension | 166 mm × 205.6 mm × 86 mm |
| Weight | Approx. 2 kg (4.4 lb.) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Certification | CCC |
| Shipping weight (estimated) | 2.90 kg |
