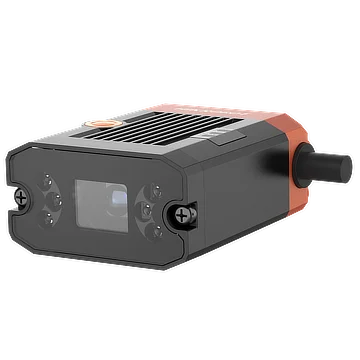

Hikrobot MV-SCP16C-H-WX-08S-WBN-S 1.6 MP color vision sensor
Model MV-SCP16C-H-WX-08S-WBN-S
Hikrobot MV-SCP16C-H-WX-08S-WBN-S 1.6 MP color vision sensor. Embedded hardware platform for high-speed image processing High-precision positioning, measurement and recognition algorithms for counting, presence checks, measurement and identification
Features
- Embedded hardware platform for high-speed image processing
- High-precision positioning, measurement and recognition algorithms for counting, presence checks, measurement and identification
- Rich I/O interface supports multiple input and output signals
- Comprehensive status indicators show device status in real time for easy setup and maintenance
- Well-designed light ensures uniform brightness across the illuminated area
- Supports RS-232, TCP, UDP, FTP, Modbus, PROFINET, EtherNet/IP and other communication modes
Specifications
| Model | MV-SCP16C-H-WX-08S-WBN-S |
|---|---|
| Brand | Hikrobot |
| Vision tool | Count: blob count, Edge count, Pattern count, Contour count; Presence: circle presence, Line presence, Blob presence, Edge presence, Pattern presence, Contour presence; Positioning: position correction; Logic: condition judgment, Logic judgment, Character comparison, Variable calculation, Combined judgment; Measurement: line-line angle, Diameter measurement, Mean brightness, Contrast measurement, Width measurement, Point-line measurement, Grayscale area, Line angle, Pitch inspection, Color area; Recognition: OCR, Registration classification, Color comparison, Color recognition |
| Solution capacity | Solution import/export supported, Up to 8 solutions stored, 40 modules |
| Communication protocol | RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1/2.9" |
| Resolution | 1408 × 1024 |
| Max. frame rate | 60 fps |
| Dynamic range | 71.4 dB |
| SNR | 41 dB |
| Gain | 0 ~ 15 dB |
| Exposure time | 16 μs ~ 1 sec |
| Pixel format | Mono 8, RGB 8 |
| Mono/color | Color |
| Data interface | Fast Ethernet(100Mbit/s) |
| Digital I/O | Ethernet female for Ethernet communication; 8-pin green terminal block for power, Digital I/O, Serial port function: 1 non-isolated input (LINE2), 1 non-isolated output (LINE3), 2 bidirectional configurable non-isolated I/O (LINE0/1), 1× RS-232, 1 external button input (BUTTON) |
| Power supply | 12 ~ 24 VDC |
| Max. power consumption | 22 W@24VDC |
| Lens mount | M12-mount, adjusting focus manually supported |
| Focal length | 8 mm |
| Lens cap | Transparent lens cap |
| Light source | White LED lamp |
| Indicator | Power indicator (PWR), network indicator (LNK), and status indicator (STS) |
| Dimension | 46 mm × 57.6 mm × 25 mm |
| Weight | Approx. 220 g (0.5 lb.) |
| Ingress protection | IP65 |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | SCMVS |
| Certification | CE, FCC, KC |
| Shipping weight (estimated) | 0.41 kg |
