Smart Camera Power and I/O Cables
Smart cameras & vision sensors

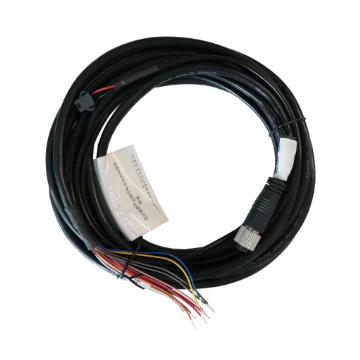

Hikrobot MV-SCA-P-M12A17pF-open-ST-7m 17-pin power cable, M12 A-coded 17-pin female to open leads, 7 m, Static, For: SC6000
Model MV-SCA-P-M12A17pF-open-ST-7m
Hikrobot MV-SCA-P-M12A17pF-open-ST-7m 17-pin power cable, M12 A-coded 17-pin female to open leads, 7 m, Static, For: SC6000. M12 17-pin static power cable for camera power and I/O input/output signals, with light connection; available in multiple lengths
Features
- M12 17-pin static power cable for camera power and I/O input/output signals, with light connection; available in multiple lengths
Specifications
| Model | MV-SCA-P-M12A17pF-open-ST-7m |
|---|---|
| Brand | Hikrobot |
| End A connector | M12 17-pin A-code female |
| End B connector | OPEN 15-core + WTW 3-core |
| Cable diameter | 7.0 mm |
| Length | 7 m |
| Cable mechanical | 24AWG |
| Jacket | PVC |
| Cable color | Black |
| Connector durability | >500 cycles |
| Min. bending radius | 84 mm |
| Applicable scenario | Static scenes |
| Max. voltage | 24 VDC |
| Working temperature | -20°C~ 80°C |
| Certification | RoHS |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.66 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Smart Camera Power and I/O Cables series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| MV-SCA-P-M12A17pF-open-ST-5m | Price on request | 3 in stock | View | |
| MV-SCA-P-M12A17pF-open-ST-15m | Price on request | 5 in stock | View | |
| MV-SCA-P-M12A17pF-open-ST-10m | Price on request | 2 in stock | View |
