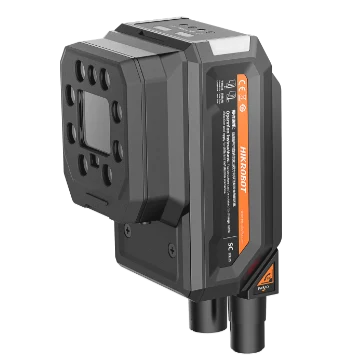

Hikrobot MV-SC5020XC-16M-WBN SC5000X series Smart Camera, 2MP, Color, M12-16mm focal length
Model MV-SC5020XC-16M-WBN
Hikrobot MV-SC5020XC-16M-WBN SC5000X series Smart Camera, 2MP, Color, M12-16mm focal length. Adopts AI deep learning algorithm to achieve OCR, object recognition, defect detection, etc. Integrates VM functions, and supports more than 140 algorithms.
Features
- Adopts AI deep learning algorithm to achieve OCR, object recognition, defect detection, etc.
- Integrates VM functions, and supports more than 140 algorithms.
- Adopts multiple I/O interfaces, such as multiple input/output signals.
- Supports multiple communication protocols.
- Supports indicators displaying device status for easy debugging and maintenance.
- Supports ingress protection IP67.
Specifications
| Model | MV-SC5020XC-16M-WBN |
|---|---|
| Brand | Hikrobot |
| Function module | Vision Master Platform (include deep learning module) |
| Communication protocol | TCP, UDP, Modbus, Serial Port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc. |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1/2.53" |
| Resolution | 1600 × 1216 |
| Max. frame rate | 100 fps |
| Gain | 0 dB to 37 dB |
| Exposure time | 15 μs to 1 sec |
| Pixel format | Mono 8, RGB 8 |
| Mono/color | Color |
| Memory | 8 GB |
| Storage | 64 GB |
| Data interface | Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input × 3 (Line 0/1/2), opto-isolated output × 3 (Line 3/4/5), and RS-232 × 1 |
| Power supply | 24 VDC |
| Power consumption | Avg. 12.3 W @ 24 VDC (with included light source on); Max. 48 W @ 24 VDC (with included light source on) |
| Lens mount | M12-mount, mechanical focusing |
| Focal length | 16 mm |
| Lens cap | Half polarization lens cap by default. Transparent or full polarization lens cap is optional. |
| Light source | White light source by default. Red, blue, or IR light source is optional. |
| Indicator | Power indicator (PWR), network indicator (LNK), and user-defined indicator (U1/U2) |
| Dimension | Straight angle: 112.3 mm × 54 mm × 60.2 mm (4.4" × 2.1" × 2.4"); Right angle: 88.7 mm × 54 mm × 82.5 mm (3.5" × 2.1" × 3.2") |
| Weight | Approx. 370 g (0.8 lb.) |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | Meets standard IEC 60068-2-6:2007.; Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z) |
| Shock resistance | Meets standard IEC 60068-2-27:2008.; Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) |
| Certification | CE, KC |
| Shipping weight (estimated) | 0.62 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
