Smart cameras & vision sensors

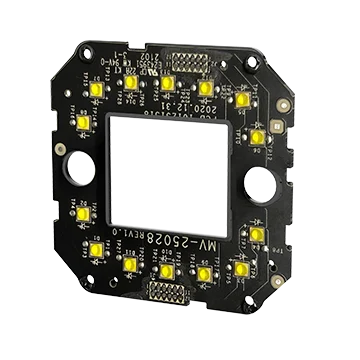

Hikrobot MV-SC3000-L-IB Smart camera square NIR light board
Model MV-SC3000-L-IB
Hikrobot MV-SC3000-L-IB Smart camera square NIR light board. MV-SC3000/5000/7000-L light board for SC3000/5000/7000 series smart cameras, with 6 independently controlled zones (top/upper left/upper right/bottom/lower left/lower right) and PWM brightness control; choose the right board for the site to improve imaging
Features
- MV-SC3000/5000/7000-L light board for SC3000/5000/7000 series smart cameras, with 6 independently controlled zones (top/upper left/upper right/bottom/lower left/lower right) and PWM brightness control; choose the right board for the site to improve imaging
Specifications
| Model | MV-SC3000-L-IB |
|---|---|
| Brand | Hikrobot |
| Light source type | Infrared, 14 LEDs |
| Light source wavelength | 850 nm |
| Emission angle | 90° |
| Data interface | Ribbon cable connection |
| Power supply | 12 ~ 24 VDC |
| Max. power consumption | 12.2W |
| Compatible models | SC3000/5000/7000 series smart camera |
| Shipping weight (estimated) | 0.66 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Smart Camera Light Board series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| MV-SC3000-L-BB | Price on request | 4 in stock | View | |
| MV-SC3000-L-RB | Price on request | 4 in stock | View |
