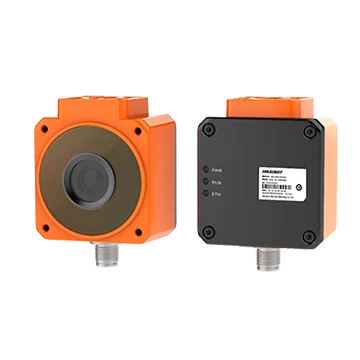

Hikrobot MV-SC2005AM-02WBN SC2000A AGV Guide Sensor, 0.5MP, Mono, M12-2mm focal length, focus 100mm
Model MV-SC2005AM-02WBN
Hikrobot MV-SC2005AM-02WBN SC2000A AGV Guide Sensor, 0.5MP, Mono, M12-2mm focal length, focus 100mm. Built-in code reading algorithm to read DM codes. Provides good robustness to read codes with spots, defects and low contrast radio.
Datasheet (PDF) - MV-SC2005AM-02WBNUser manual (PDF) - MV-SC2005AM-02WBNCAD: 3D STEP + 2D DXF (ZIP) - MV-SC2005AM-02WBN
Features
- Built-in code reading algorithm to read DM codes.
- Provides good robustness to read codes with spots, defects and low contrast radio.
- Adopts CMOS sensor to provide high-quality images.
- Adopts multiple indicators for displaying status and debugging.
- Adopts M12 lens and supports large field of view.
- Better optical design to provide uniform illumination and applicable to strong reflection.
Specifications
| Model | MV-SC2005AM-02WBN |
|---|---|
| Brand | Hikrobot |
| Symbologies | 2-dimensional codes: DM-12, DM-14 |
| Max. frame rate | 100 fps |
| Max. reading speed | 100 codes/sec |
| Max. running speed | 3 m/sec (it is the AGV's max. running speed) |
| Sensor type | CMOS, global shutter |
| Pixel size | 4.8 μm × 4.8 μm |
| Sensor size | 1/3.6" |
| Resolution | 800 × 600 |
| Exposure time | 20 μs to 9000 μs |
| Gain | 1 dB to 330 dB |
| Mono/color | Mono |
| Communication protocol | SmartSDK, UDP, Serial |
| Data interface | Fast Ethernet (100 Mbit/sec), RS-485 |
| Digital I/O | 12-pin M12 connector provides power supply and RS-485 × 1 |
| Power supply | 24 VDC |
| Max. power consumption | 18 W@24 VDC (self light source enabled); 3 W@24 VDC (self light source disabled) |
| Focal length | 2.5 mm |
| Working distance | 100 mm ± 5 mm |
| Displacement accuracy | 0.1 mm |
| Angle accuracy | 0.1° |
| Field of view | 93.8° |
| Field of view (range) | 170 mm × 130 mm (it is the field of view under 100 mm ± 5 mm working distance. If the working distance changes, the field of view will vary too.) |
| Dimension | 68 mm × 60 mm × 40.8 mm (2.7" × 2.4" × 1.6") |
| Weight | Approx. 200 g (0.4 lb.) |
| Ingress protection | IP65 (with proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 10% to 90% RH, non-condensing |
| Client software | IDMVS |
| Certification | CE, RoHS |
| Shipping weight (estimated) | 0.38 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the SC2000A Series Guide Sensor series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| MV-SC2005AC-02WBN | 0.5 MP, 1/3.6", 2.5 mm lens, Color | Price on request | 4 in stock | View |
| MV-SC2005AC-03WBN | 0.5 MP, 1/3.6", 3.4 mm lens, Color | Price on request | 4 in stock | View |
