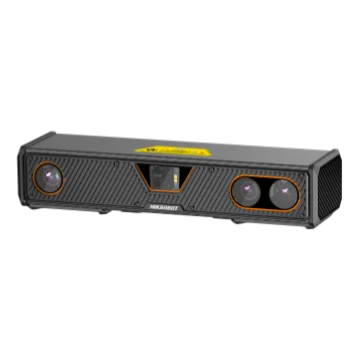

Hikrobot MV-RS-Ultra-M Galvanometer Laser 3D Camera
Model MV-RS-Ultra-M
Hikrobot MV-RS-Ultra-M Galvanometer Laser 3D Camera. Customized optical system provides high-quality image. Supports high-uniformity laser module to provide a more detailed point cloud.
Datasheet (PDF) - MV-RS-Ultra-MUser manual (PDF) - MV-RS-Ultra-MCAD: 3D STEP + 2D DXF (ZIP) - MV-RS-Ultra-M
Features
- Customized optical system provides high-quality image.
- Supports high-uniformity laser module to provide a more detailed point cloud.
- Supports multi-core parallel processing with high precision and high image acquisition rate.
- Supports alignment between depth images and RGB images, convenient for secondary development.
- Adopts high-strength carbon fiber design with high stability.
Specifications
| Model | MV-RS-Ultra-M |
|---|---|
| Brand | Hikrobot |
| Near field of view | 540 mm × 530 mm @ 700 mm |
| Typical field of view | 890 mm × 760 mm @ 1000 mm |
| Far field of view | 1240 mm × 1060 mm @ 1400 mm |
| Clearance distance (CD) | 700 mm |
| Measurement range (MR) | 700 mm |
| Repeatability (Z-axis)* | 0.06 mm @ 1000 mm |
| VDI/VDE accuracy* | 0.12 mm @ 1000 mm |
| Resolution | RGB: 4000 × 3000; Depth: 2448 × 2048 |
| Data acquisition time | 0.4 s to 0.9 s |
| Image output delay | 1.0 s to 1.7 s |
| Data type | Original image (mono and color images), depth image, RGB-D image |
| Data interface | Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin M12 interface provides power and I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7) |
| Power supply | 24 VDC |
| Power consumption | Typ. 15 W @ 24 VDC |
| Dimension | 385.7 mm × 81.8 mm × 127 mm (15.2" × 3.2" × 5") |
| Weight | Approx. 2.3 kg (5.1 lb.) |
| Ingress protection | IP65 |
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Laser safety class | Class 2 |
| Wavelength | 638 nm |
| Client software | RobotPilot, HiViewer |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 |
| Certification | RoHS |
| Shipping weight (estimated) | 3.32 kg |
