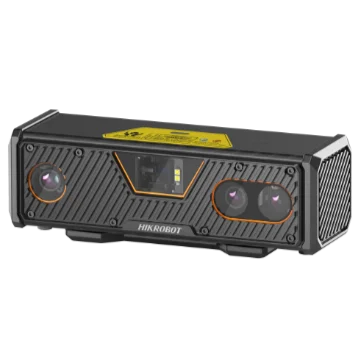

Hikrobot MV-RS-Base-M Galvanometer Laser 3D Camera
Model MV-RS-Base-M
Hikrobot MV-RS-Base-M Galvanometer Laser 3D Camera. Customized optical system provides high-quality image. Supports high-uniformity laser module to provide a more detailed point cloud.
Features
- Customized optical system provides high-quality image.
- Supports high-uniformity laser module to provide a more detailed point cloud.
- Supports multi-core parallel processing with high precision and high image acquisition rate.
- Supports alignment between depth images and RGB images, convenient for secondary development.
- Adopts light-weight design and small size with high stability for flexible installation and use.
Specifications
| Model | MV-RS-Base-M |
|---|---|
| Brand | Hikrobot |
| Near field of view | 430 mm × 380 mm @ 800 mm |
| Typical field of view | 570 mm × 480 mm @ 1000 mm |
| Far field of view | 720 mm × 580 mm @ 1200 mm |
| Clearance distance (CD) | 800 mm |
| Measurement range (MR) | 400 mm |
| Repeatability (Z-axis)* | 0.08 mm @ 1000 mm |
| VDI/VDE accuracy* | 0.10 mm @ 1000 mm |
| Resolution | RGB: 3200 × 1944; Depth: 1632 ×1264 |
| Data acquisition time | 0.4 s to 0.9 s |
| Image output delay | 0.8 s to 1.5 s |
| Data type | Original image (mono and color images), depth image, RGB-D image |
| Data interface | Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin M12 interface provides power and I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7) |
| Power supply | 24 VDC |
| Power consumption | Typ. 12 W @ 24 VDC |
| Dimension | 236.3 mm × 79.8 mm × 98.5 mm (9.3" × 3.1" × 3.9") |
| Weight | Approx. 1.3 kg (2.9 lb.) |
| Ingress protection | IP65 |
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Laser safety class | Class 2 |
| Wavelength | 450 nm |
| Client software | RobotPilot, HiViewer |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 |
| Certification | RoHS |
| Shipping weight (estimated) | 1.92 kg |
