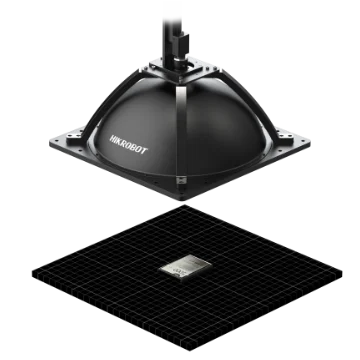

Hikrobot MV-PSL-4K200-C4D50-WDM Dome-light vision inspection system, Resolution 4K, 500 mm dome light, White light
Model MV-PSL-4K200-C4D50-WDM
Hikrobot MV-PSL-4K200-C4D50-WDM Dome-light vision inspection system, Resolution 4K, 500 mm dome light, White light. 2.5D vision inspection system based on photometric stereo extracts surface relief features Effectively avoids interference from same-color features, matte materials and complex backgrounds; suited to defect inspection on matte and rough surfaces
Features
- 2.5D vision inspection system based on photometric stereo extracts surface relief features
- Effectively avoids interference from same-color features, matte materials and complex backgrounds; suited to defect inspection on matte and rough surfaces
- Dome light supports area-scan and line-scan modes for static and dynamic scanning
- The 2.5D system works with Vision Master software for simultaneous 2.5D imaging and defect recognition
Specifications
| Model | MV-PSL-4K200-C4D50-WDM |
|---|---|
| Brand | Hikrobot |
| Pixel size | 7 μm × 7 μm |
| Resolution | 4096 × 2 |
| Max. line rate | 195 kHz(1-Line), 100 kHz(2-TDI) |
| Mono/color | Mono |
| Pixel format | Mono 8/10/12 |
| Transmission interface | LC fiber port |
| Dimension | 550 mm × 550 mm × 395 mm |
| Emitting area dimension | 400 mm × 400 mm |
| Color | White |
| Communication | GigE |
| Shipping weight (estimated) | 2.20 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
