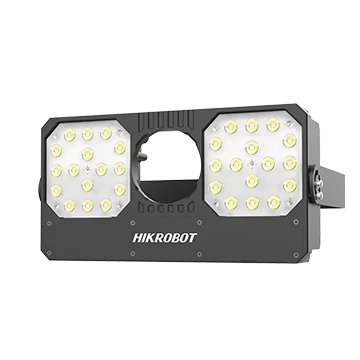

Hikrobot MV-LB-270-140-4030WL-A 24 V continuous light for ID6000 series
Model MV-LB-270-140-4030WL-A
Hikrobot MV-LB-270-140-4030WL-A 24 V continuous light for ID6000 series. For ID6000 series smart code readers; the light can be controlled directly by the code reader Continuous, strobe and trigger modes, with three brightness levels adjustable in real time
Datasheet (PDF, Chinese) - MV-LB-270-140-4030WL-ACAD: 3D STEP + 2D DXF (ZIP) - MV-LB-270-140-4030WL-A
Features
- For ID6000 series smart code readers; the light can be controlled directly by the code reader
- Continuous, strobe and trigger modes, with three brightness levels adjustable in real time
- Concentrated light with high luminous efficiency, distinctive housing and simple installation
- Over-temperature protection; resumes operation automatically once conditions return to normal
- Industrial design with a high-transmittance, heat-resistant acrylic panel: minimal brightness loss while reducing eye discomfort
- Professional structural, driver and light-distribution design for very long service life
- Free of lead and mercury, environmentally friendly
Specifications
| Model | MV-LB-270-140-4030WL-A |
|---|---|
| Brand | Hikrobot |
| Light source type | 32 continuous LEDs |
| Center illuminance | 25000 lux@1000 mm |
| Uniformity | 0.5 |
| Luminous flux | 11700 lm |
| Color rendering index | >70 |
| Light source wavelength | 380 ~ 780 nm |
| Emission angle | 40° × 30° |
| Color temperature | 6500 K |
| Optimal projection distance | 1.8 m |
| Power supply | 24 VDC |
| Max. power consumption | 130 W(24 VDC) |
| Dimension | 141 mm × 268 mm × 170.5 mm |
| Weight | Approx. 2 kg (4.4 lb.) |
| Shell material | Aluminum alloy |
| Pigtail cable length | 10 m |
| Ingress protection | IP40 |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Certification | CE, FCC, RoHS |
| Safety class | RG1 |
| Safety distance | 0.60 m |
| Shipping weight (estimated) | 2.90 kg |
