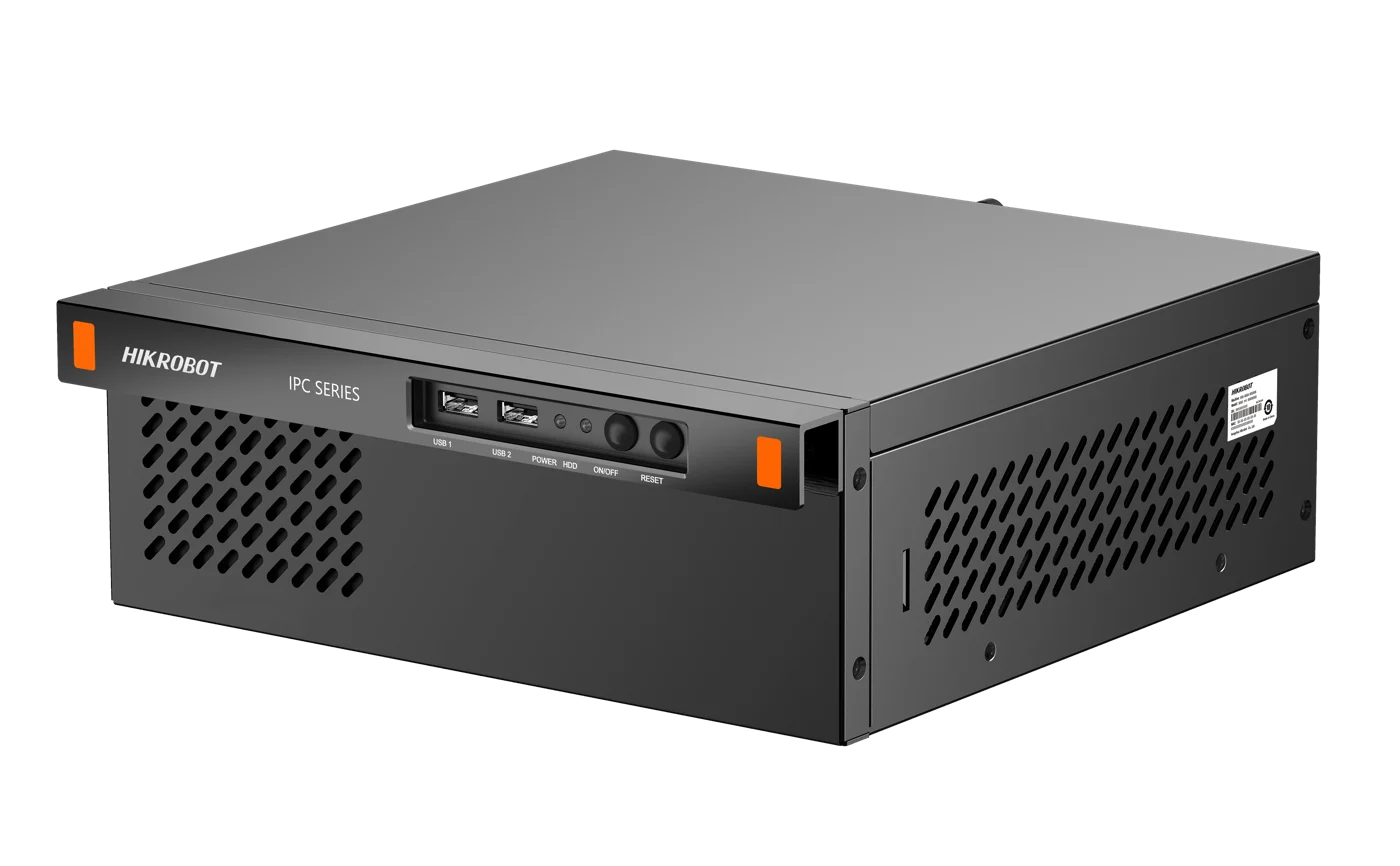

Hikrobot MV-IPC-H265H-8G-256G-240 2U wall-mount industrial PC, H110, i5-6500, 8G, 256G, 150W
Model MV-IPC-H265H-8G-256G-240
Hikrobot MV-IPC-H265H-8G-256G-240 2U wall-mount industrial PC, H110, i5-6500, 8G, 256G, 150W. Supports Intel® Gen 6/7/8/9 Core™ i3/i5/i7, Pentium® and Celeron® CPUs 2× DDR4 SO-DIMM memory slots, up to 32 GB
Datasheet (PDF, Chinese) - MV-IPC-H265H-8G-256G-240CAD: 3D STEP + 2D DXF (ZIP) - MV-IPC-H265H-8G-256G-240
Features
- Supports Intel® Gen 6/7/8/9 Core™ i3/i5/i7, Pentium® and Celeron® CPUs
- 2× DDR4 SO-DIMM memory slots, up to 32 GB
- 1× PCIe x16 and 1× Mini-PCIe expansion
- Onboard 2× Realtek GigE ports, 4× USB3.0 ports and 6× USB2.0 ports
- VGA + 2× HDMI display outputs with independent dual-display support
Specifications
| Model | MV-IPC-H265H-8G-256G-240 |
|---|---|
| Brand | Hikrobot |
| CPU | Supports LGA1151 Intel® CoreTM Gen 6/7/8/9, i3/i5/i7 and Pentium®, Celeron® CPU; CPU TDP up to 65 W |
| Chip | Intel® H110 chipset, Mini-ITX motherboard |
| Memory | 2 × DDR4 SO-DIMM memory slots, 16 GB per module, Up to 32 GB |
| Storage | 2× SATA3.0 supported, 1× mSATA slot |
| Operating system | Windows 7/10, Linux |
| Network interface | 2× Realtek 8111H Gigabit Ethernet port |
| USB Interface | 4× USB 3.0 ports1, 2× USB 2.0 ports; Built-in 4× USB 2.0 (pin header) |
| Serial Port | Onboard 1× RS-232/422/485 port; 5 × internal RS-232 headers |
| Extended interface | Includes 1× PCIe3.0 x16, 1× Mini-PCIe slot (with SIM card slot) |
| Display interface | Independent dual display supported; 1 × VGA, up to 1920×1200@60Hz; 2× HDMI, up to 3840×2160 @ 60 Hz |
| Audio interface | Mic-In, Line-out |
| GPIO | 8-bit GPIO |
| Power supply | 100 ~ 240V AC |
| Max. power consumption | 150W |
| Installation method | Wall-mount |
| Dimension | 251mm × 245 mm × 89 mm (L*W*H) |
| Weight | Net weight approx. 4.3 kg |
| Temperature | Operating temp.: 0 to 40 °C, Storage temp.: -20 °C to 60 °C |
| Humidity | 20% RH to 95% RH (no condensation) |
| Shipping weight (estimated) | 6.12 kg |
