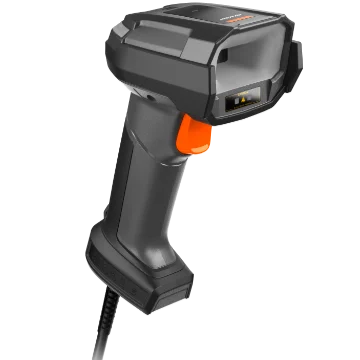

Hikrobot MV-IDH5000P/13SR/04RN/LE General-purpose wired industrial handheld code reader
Model MV-IDH5000P/13SR/04RN/LE
Hikrobot MV-IDH5000P/13SR/04RN/LE General-purpose wired industrial handheld code reader. In-house high-performance barcode algorithm efficiently reads difficult DPM codes in industrial applications Robust algorithm handles low-contrast, inverted, dirty and damaged codes
Datasheet (PDF, Chinese) - MV-IDH5000P/13SR/04RN/LEUser manual (PDF, Chinese) - MV-IDH5000P/13SR/04RN/LECAD: 3D STEP + 2D DXF (ZIP) - MV-IDH5000P/13SR/04RN/LE
Features
- In-house high-performance barcode algorithm efficiently reads difficult DPM codes in industrial applications
- Robust algorithm handles low-contrast, inverted, dirty and damaged codes
- Integrated direct and diffuse illumination with smart cycling of white, red, blue and tri-color light for highly reflective and irregular surfaces
- Batch, precise and presence-sensing read modes greatly improve efficiency in multi-code scenarios
- USB-HID, USB-CDC, RS-232, network protocol and industrial protocol output modes
- Detachable cable design for easy replacement
- IP65 protection and 2.0 m drop resistance: rugged and durable
- Beeper, indicator and vibration status feedback
- Rich data formatting, easily configured via IDMVS, IDAS (Android) or setup codes
Specifications
| Model | MV-IDH5000P/13SR/04RN/LE |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128 (incl. GS1-128), Coda Bar, EAN8, EAN13, ISBN, ISSN, ITF14, ITF25, UPCA, UPCE; Matrix 2D code: QR Code (incl. GS1-QR), Data Matrix (incl. GS1-DM), Micro QR, Aztec, Han Xin; Stacked 2D code: PDF417, Micro PDF417 |
| Min. accuracy | 1D codes: 3 mil; 2D codes: 5 mil |
| Sensor type | CMOS |
| Resolution | 1280 × 1024 |
| Depth of field | Code 39(3 mil):35 mm ~ 140 mm; Code 39(10 mil):0 mm ~ 440 mm; Code 128(5 mil):30 mm ~ 185 mm; Code 128(20 mil):\ mm ~ 750 mm; Data Matrix(5 mil):60 mm ~ 80 mm; Data Matrix(20 mil):0 mm ~ 485 mm; QR Code(10 mil):0 mm ~ 220 mm; PDF417(7 mil):0 mm ~ 230 mm |
| Field of view | 43° (H) × 35° (V) |
| Detection angle | Horizontal 39°, vertical 29° |
| Symbol contrast | 20 % |
| Communication protocol | SmartSDK, TCP Server, Serial, FTP, TCP Client, UDP, EIP, ModBus, Profinet, Fins, MC |
| Data interface | Fast Ethernet(100 Mbit/s), DC terminal, RS-232 |
| Power supply | 12 ~ 24 VDC |
| Current consumption | DC terminal: 0.63 A (max. current); 0.28 A (typical current); USB: 0.9 A (max. current); 0.56 A (typical current) |
| Ambient illumination | 0 ~ 100000 lux |
| Light source | Direct light: white LED; Diffuse light: red LED, Blue LED |
| Aiming system | Cross laser aiming |
| Prompt | LED indicator, buzzer, vibrator |
| Dimension | 72.8 mm × 98.2 mm × 196.5 mm |
| Weight | Approx. 260 g (0.6 lb.) |
| Ingress protection | IP65 |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 5% RH to 95% RH (no condensation) |
| Drop height | Drop: 2.0 m, 50 times; Drop: 1.8 m, 70 times; Tumble: 0.5 m, 2000 times |
| Laser safety class | Laser 2 |
| Wavelength | 650 nm |
| Pulse width | 8 ms |
| Maximum power | 1 mW |
| Client software | IDMVS |
| Certification | CE, KC |
| Shipping weight (estimated) | 0.46 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the IDH5000P Series Handheld Code Reader series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| MV-IDH5000P/13NR/04RN/U | 1.3 MP | Price on request | 5 in stock | View |
| MV-IDH5000P/13NR/04RN/L | 1.3 MP | Price on request | 2 in stock | View |
| MV-IDH5000P/13NR/04RN/LE | 1.3 MP | Price on request | 4 in stock | View |
| MV-IDH5000P/13SR/04RN/U | 1.3 MP | Price on request | 4 in stock | View |
| MV-IDH5000P/13SR/04RN/L | 1.3 MP | Price on request | 3 in stock | View |
