Fixed code readers

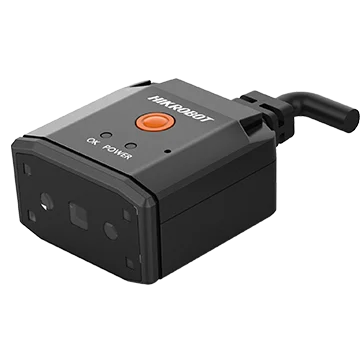

Hikrobot MV-IDB005EXI-05W Fully isolated version, 1.3 MP resolution, 5 mm focal length, 120 mm focus distance, White light, Clear-window industrial code reader
Model MV-IDB005EXI-05W
Hikrobot MV-IDB005EXI-05W Fully isolated version, 1.3 MP resolution, 5 mm focal length, 120 mm focus distance, White light, Clear-window industrial code reader. Ultra-compact: fits all kinds of machines and tight workstations Rich I/O interface and plug-in power connector for easy field wiring
Datasheet (PDF, Chinese) - MV-IDB005EXI-05WUser manual (PDF, Chinese) - MV-IDB005EXI-05WCAD: 3D STEP + 2D DXF (ZIP) - MV-IDB005EXI-05W
Features
- Ultra-compact: fits all kinds of machines and tight workstations
- Rich I/O interface and plug-in power connector for easy field wiring
- Built-in LED aiming clearly marks the field of view for fast installation and setup
- Beeper and status indicators show operating status for easy on-site setup
- One-click parameter tuning simplifies configuration
- Independent light zone control for flexible illumination
Specifications
| Model | MV-IDB005EXI-05W |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, EAN8, EAN13, ITF 14, ITF 25, CodaBar, UPCA, UPCE; 2D codes: QR Code, Data Matrix, MicroQR, AZTEC, HanXin; Stacked codes: PDF417 |
| Max. frame rate | 50 fps |
| Max. reading speed | 30 codes/sec |
| Sensor type | CMOS, global shutter, mono, 1/4", 2.7 μm × 2.7 μm |
| Resolution | 1024 × 1280 |
| Exposure time | 60 μs ~ 6000 μs |
| Gain | 1 ~ 28 dB |
| Depth of field | Code 39(5 mil):75 ~ 215 mm; Code 128(10 mil):50 ~ 400 mm; EAN13(13 mil):60 ~ 420 mm; QR Code(15 mil):40 ~ 290 mm; Data Matrix(10 mil):50 ~ 240 mm |
| Data interface | Fast Ethernet (100 Mbit/s), RS-232, DC terminal |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, UDP, Profinet, Ethernet/IP |
| Digital I/O | DB15 connector for power and I/O, Incl. 2 opto-isolated inputs (pin 0/1 input), 2 opto-isolated outputs (pin 3/4 output), 1× RS-232, Trigger via side button supported, Device reboot |
| Power supply | 12 ~ 24 VDC |
| Power consumption | Avg. power 2.5 W @ 12 to 24 VDC, Max. power 5 W @ 12 to 24 VDC |
| Focal length | 4.63 mm |
| Lens mount | M5.8-Mount |
| Ambient illumination | 0 ~ 10000 lux |
| Light source | White |
| Aiming system | Green LED |
| Indicator | Power indicator (POWER), status indicator (OK/NG) |
| Shell material | PVC |
| Dimension | 45 mm × 43 mm × 25 mm |
| Weight | Approx. 68.5 g (0.2 lb.) |
| Ingress protection | IP54 |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | Device only: 10 Hz to 55 Hz, 1.5 mm full amplitude, 2 hours per axis (X/Y/Z) (IEC 60068-2-6:2007\GB/T 2423.10-2019) |
| Shock resistance | Device only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019) |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.20 kg |
