Fixed code readers

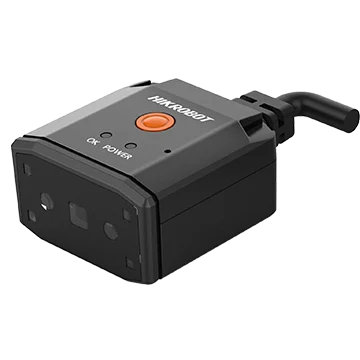

Hikrobot MV-IDB005EPX-05RPU 2013EM metal version, 1.3 MP resolution, 120 mm focus, Red light, Polarized, USB port
Model MV-IDB005EPX-05RPU
Hikrobot MV-IDB005EPX-05RPU 2013EM metal version, 1.3 MP resolution, 120 mm focus, Red light, Polarized, USB port. Ultra-compact: fits all kinds of machines and tight workstations Rich I/O interface and plug-in power connector for easy field wiring
Datasheet (PDF, Chinese) - MV-IDB005EPX-05RPUUser manual (PDF, Chinese) - MV-IDB005EPX-05RPUCAD: 3D STEP + 2D DXF (ZIP) - MV-IDB005EPX-05RPU
Features
- Ultra-compact: fits all kinds of machines and tight workstations
- Rich I/O interface and plug-in power connector for easy field wiring
- Built-in LED aiming clearly marks the field of view for fast installation and setup
- Beeper and status indicators show operating status for easy on-site setup
- One-click parameter tuning simplifies configuration
Specifications
| Model | MV-IDB005EPX-05RPU |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128, ITF14, ITF25, CodaBar, EAN, UPCA, UPCE, etc.; 2D code: QR Code, Data Matrix, etc. |
| Max. frame rate | 50 fps |
| Max. reading speed | 30 codes/sec |
| Sensor type | CMOS, global shutter, mono, 1/4", 2.7 μm × 2.7 μm |
| Resolution | 1280 × 1024 |
| Exposure time | 60 μs ~ 0.6 sec |
| Gain | 1 ~ 28 dB |
| Depth of field | Code 39(5 mil):75 ~ 215 mm; Code 128(10 mil):50 ~ 400 mm; EAN 13(13 mil):60 ~ 420 mm; QR Code(15 mil):40 ~ 290 mm; Data Matrix(10 mil):50 ~ 240 mm |
| Data interface | USB 2.0 |
| Communication protocol | SmartSDK, USB(HID, CDC) |
| Digital I/O | DB15 connector for data transmission, Device trigger via side button supported |
| Power supply | 5 VDC (USB 2.0 powered) |
| Power consumption | Avg. power: 2.5 W @ 5 VDC; Max. power: 5 W @ 5 VDC |
| Focal length | 4.70 mm |
| Light source | Red (polarized) |
| Aiming system | Green LED |
| Indicator | Power indicator (POWER), status indicator (OK/NG) |
| Shell material | Metal |
| Dimension | 45 mm × 43 mm × 25 mm |
| Weight | Approx. 68.5 g (0.2 lb.) |
| Ingress protection | IP54 |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | 10 Hz ~ 55 Hz, Full amplitude 1.5 mm X, Y, Z directions, 2 h each (IEC 60068-2-6:2007\GB/T; 2423.10-2019 ) |
| Shock resistance | 30 g / 11 ms, Half-sine wave, Six axes, 500 shocks per axis (IEC 60068-2-27\GB/T 2423.5-; 2019 ) |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.20 kg |
