Smart Camera Extension Cables
Smart cameras & vision sensors

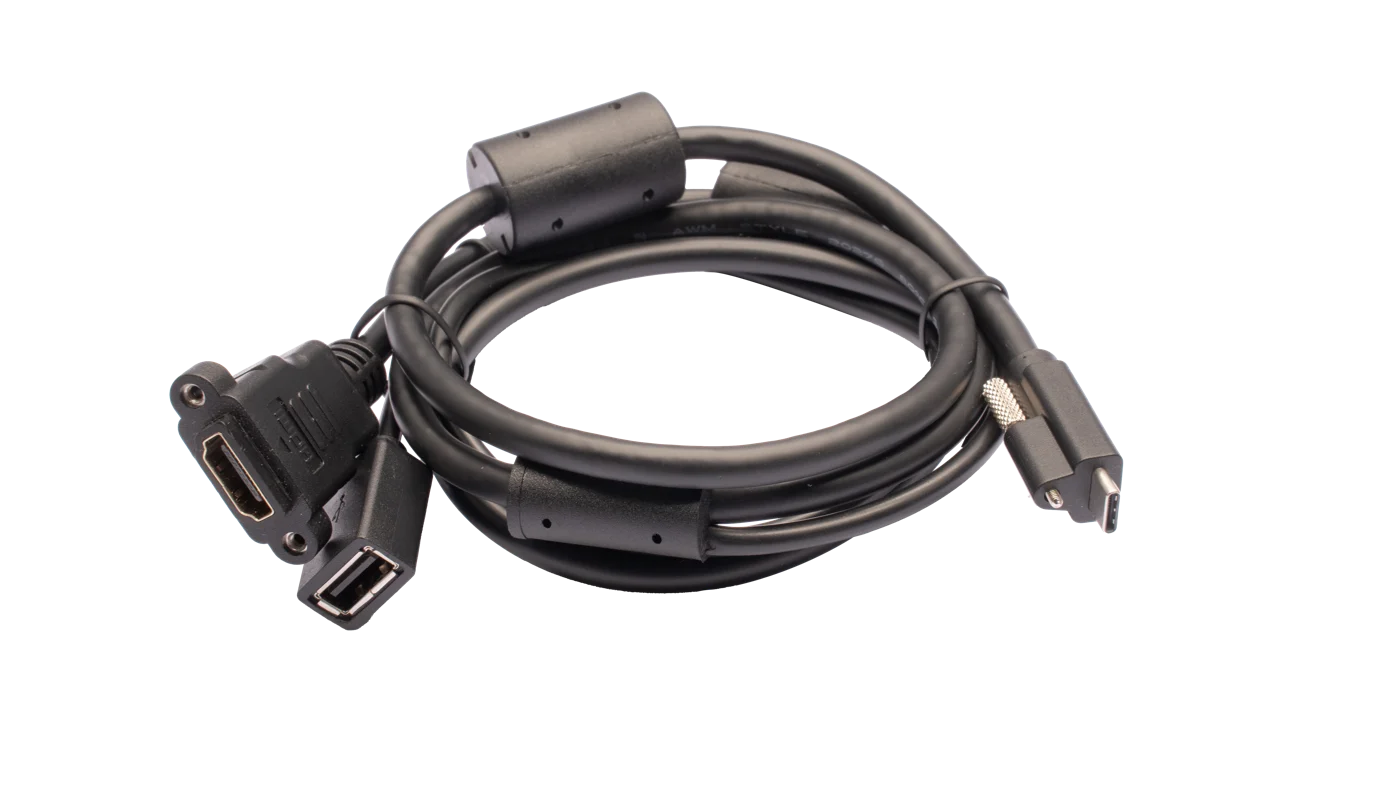

Hikrobot MV-IDAX-CM-AF-HDMIF-ST-1m TypeC expansion cable, TypeC male to USB female + HDMI female, 1 m, Static, For: SC5000X
Model MV-IDAX-CM-AF-HDMIF-ST-1m
Hikrobot MV-IDAX-CM-AF-HDMIF-ST-1m TypeC expansion cable, TypeC male to USB female + HDMI female, 1 m, Static, For: SC5000X. This adapter cable provides HDMI and USB ports for connecting a monitor, keyboard and mouse to the smart camera, making it easy to view and manage vision solutions running on the camera's Linux ARM system.
Features
- This adapter cable provides HDMI and USB ports for connecting a monitor, keyboard and mouse to the smart camera, making it easy to view and manage vision solutions running on the camera's Linux ARM system.
Specifications
| Model | MV-IDAX-CM-AF-HDMIF-ST-1m |
|---|---|
| Brand | Hikrobot |
| End A connector | TYPE-C_M |
| End B connector | HDMI_F, USB_F |
| Cable diameter | 6.2 mm |
| Length | 1 m |
| Cable mechanical | (32AWG*4P+32AWG*4C+AB)+(32AWG*1P+26AWG*2C+AB)+F |
| Jacket | PVC |
| Cable color | Black |
| Min. bending radius | 75 mm |
| Applicable scenario | Connects the smart camera to an external HDMI monitor or keyboard, , mouse and other USB devices |
| Max. voltage | 5 VDC |
| Working temperature | -20°C~ 60°C |
| Certification | RoHS, UL |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.66 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Smart Camera Extension Cables series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| MV-IDAX-CM-AF-HDMIF-ST-3m | Price on request | 3 in stock | View |
