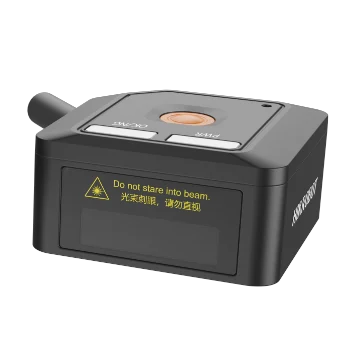

Hikrobot MV-IDA05X-05WS Distribution model, 1.3 MP resolution, 5 mm focal length, Warm white light, SR, Clear, GigE
Model MV-IDA05X-05WS
Hikrobot MV-IDA05X-05WS Distribution model, 1.3 MP resolution, 5 mm focal length, Warm white light, SR, Clear, GigE. Ultra-compact: fits all kinds of machines and tight workstations In-house high-performance barcode algorithm efficiently reads difficult inkjet-printed codes in light industry, enterprise and retail
Datasheet (PDF, Chinese) - MV-IDA05X-05WSUser manual (PDF, Chinese) - MV-IDA05X-05WSCAD: 3D STEP + 2D DXF (ZIP) - MV-IDA05X-05WS
Features
- Ultra-compact: fits all kinds of machines and tight workstations
- In-house high-performance barcode algorithm efficiently reads difficult inkjet-printed codes in light industry, enterprise and retail
- Built-in laser aiming clearly marks the field of view for fast installation and setup
- Beeper and status indicators show operating status for easy on-site setup
- USB-HID, USB-CDC, RS-232 and RJ45 output modes
Specifications
| Model | MV-IDA05X-05WS |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128 (incl. GS1-128), ITF14, ITF25, CodaBar, EAN8, EAN13, UPCA, UPCE; Matrix 2D code: QR Code (incl. GS1-QR), Data Matrix (incl. GS1-DM), Micro QR, AZTEC, Han Xin; Stacked 2D code: PDF417 |
| Min. accuracy | 1D code: 3 mil; 2D code: 10 mil |
| Max. frame rate | 60 fps |
| Max. reading speed | 20 codes/s |
| Sensor type | Mono, 1/4”, 2.7 μm × 2.7 μm |
| Resolution | 1280 × 1024 |
| Depth of field | Code39(5 mil):75 mm ~ 250 mm; Code128(3 mil):80 mm ~ 150 mm; Code128(10 mil):65 mm ~ 420 mm; QR Code(10mil):75 mm ~ 230 mm; QR Code(20mil):65 mm ~ 480 mm |
| Exposure time | 60 us ~7000 us |
| Gain | 1 dB ~ 15 dB |
| Data interface | RJ45 |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, ; TCP Server, UDP |
| Digital I/O | 1 non-isolated input (pin 1 input), 1 non-isolated output (pin 3 output), 1× RS-232; Device trigger via top button supported |
| Power supply | 12 ~ 24 VDC |
| Power consumption | Max. power: 2.5 W @ 12 VDC |
| Focal length | 4.9 mm |
| Lens mount | M10-Mount |
| Lens cap | Clear or polarized optional |
| Ambient illumination | 0 ~ 100000 lux |
| Light source | Warm white LED |
| Aiming system | Cross laser aiming |
| Status indicator | LED indicator, Buzzer |
| Shell material | Metal |
| Dimension | 38 mm × 38 mm × 19 mm |
| Weight | Approx. 40 g (0.09 lb.) without cable |
| Ingress protection | IP54 |
| Temperature | Operating temp.: -20 to 50 °C, Storage temp.: -40 to 70 °C |
| Humidity | 5% to 95% RH (non-condensing) |
| Vibration resistance | 10 Hz ~ 55 Hz, Full amplitude 1.5 mm X, Y, Z directions, 2 h each (IEC 60068-2-6:2007\GB/T 2423.10-2019) |
| Shock resistance | 30 g / 11 ms, Half-sine wave, Six axes, 500 shocks per axis (IEC 60068-2-27\GB/T 2423.5-2019) |
| Laser safety class | Laser 2 |
| Wavelength | 650 nm |
| Beam divergence angle | 14.5°× 14.5° |
| Repetition rate | Always on |
| Maximum power | 3.8 mW |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.16 kg |
