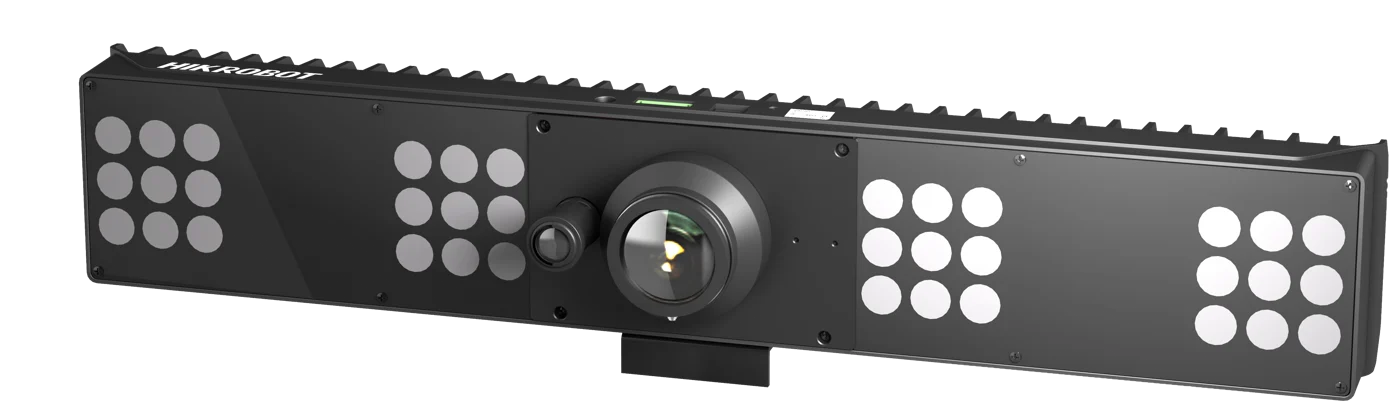

Hikrobot MV-ID7080EM-35F-WHA V3.0 8K Logistic Code Reader
Model MV-ID7080EM-35F-WHA V3.0
Hikrobot MV-ID7080EM-35F-WHA V3.0 8K Logistic Code Reader. Built-in code reading algorithm to read different types of one-dimensional and two-dimensional codes with good robustness. Supports image stitching and outputting combined images according to order.
Datasheet (PDF) - MV-ID7080EM-35F-WHA V3.0User manual (PDF) - MV-ID7080EM-35F-WHA V3.0CAD: 3D STEP + 2D DXF (ZIP) - MV-ID7080EM-35F-WHA V3.0
Features
- Built-in code reading algorithm to read different types of one-dimensional and two-dimensional codes with good robustness.
- Supports image stitching and outputting combined images according to order.
- Adopts image sensor to acquire and provide high-quality images.
- Supports different trigger modes and image acquisition modes.
- Adopts multiple IO interfaces for input/output signals.
- Supports RS-232 serial communication protocol.
- Integrated light source design with 36 LED lamps.
Specifications
| Model | MV-ID7080EM-35F-WHA V3.0 |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, ITF25, ITF14, UPCA, UPCE; 2-dimensional codes: QR Code, Data Matrix; Stacked barcode: PDF417 |
| Max. line frequency | 15 kHz |
| Max. operating speed of conveyer belt | 2.5 m/s |
| Resolution | 7424 × 1 |
| Focal length | 35 mm |
| Best working distance | 1000 mm |
| Field of view (range) | 1000 mm @10 mil |
| Mono/color | Mono |
| Communication protocol | SmartSDK, TCP Client, TCP Server, Serial, FTP, UDP |
| Data interface | Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 10-pin green terminal provides I/O, including differential input (LineIn 0) × 1, opto-isolated input (LineIn 1) × 1, opto-isolated output (LineOut 3/4) × 2, and RS-232 × 1. |
| Power supply | 48 VDC |
| Max. power consumption | 180 W @ 48 VDC |
| Lens mount | F-mount, flange back focal length 46.5 mm |
| Aiming system | Green LED |
| Dimension | 608.3 mm × 127.6 mm × 167.1 mm (23.9" × 5.0" × 6.6") |
| Weight | Approx. 5 kg (11 lb.) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH, non-condensing |
| Client software | IDMVS |
| Operating system | 32/64-bit Windows XP/7/10 |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 7.10 kg |
