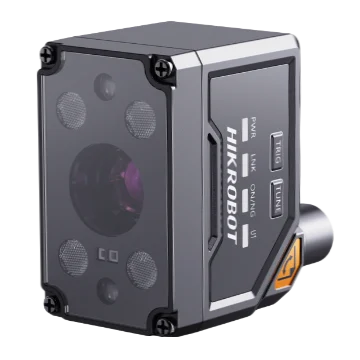

Hikrobot MV-ID2563XM-05M-RBN 2.4 MP industrial code reader
Model MV-ID2563XM-05M-RBN
Hikrobot MV-ID2563XM-05M-RBN 2.4 MP industrial code reader. Highly robust algorithm accurately reads difficult codes: damaged, skewed, low-contrast and laser-etched on metal Integrated digital wide dynamic range (WDR) processing, 4-zone independent light control and a range of optical accessories for sharper code detail
Features
- Highly robust algorithm accurately reads difficult codes: damaged, skewed, low-contrast and laser-etched on metal
- Integrated digital wide dynamic range (WDR) processing, 4-zone independent light control and a range of optical accessories for sharper code detail
- Modular assembly, rotatable tail cable, separable cables and multi-side mounting interfaces for tight spaces
- Multiple isolated I/O channels and industrial protocols for seamless integration with automation systems
- With IDMVS V5.0.0 or later client: autofocus, one-click tuning and more for fast, easy setup
Specifications
| Model | MV-ID2563XM-05M-RBN |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128 (incl. GS1-128), CodaBar, EAN8, EAN13, UPCA, UPCE, ITF14, ITF25, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, Pharmacode, etc.; 2D code: QR Code (incl. GS1-QR), Data Matrix (incl. GS1-DM), MicroQR, AZTEC, HanXin, etc.; Stacked code: PDF417 |
| Max. frame rate | 60 fps |
| Max. reading speed | 60 codes/sec |
| Sensor type | CMOS, global shutter |
| Pixel size | 2.2 μm × 2.2 μm |
| Sensor size | 1/3.52” |
| Resolution | 1920 × 1280 |
| Exposure time | 36 μs ~ 100 ms |
| Gain | 0 dB ~ 48 dB |
| Mono/color | Mono |
| Communication protocol | 1 dB to 2.5 dB |
| Data interface | Fast Ethernet(100 Mbit/s) |
| Digital I/O | 17-pin M12 connector for power and I/O: 2 isolated inputs (LineIn 0/1), 2 isolated outputs (LineOut 3/4), 1× RS-232, Device trigger via side button supported |
| Power supply | 24 VDC |
| Power consumption | Avg. power: 5 W @ 24 VDC (built-in light on); Max. power: 12 W @ 24 VDC (built-in light on) |
| Focal length | 5mm |
| Lens mount | M12-mount, mechanical focusing |
| Lens cap | Half polarization lens cap by default. Transparent or full polarization lens cap is optional. |
| Light source | Red light, White light optional, Blue light, IR light, UV or red/blue dual-color |
| Aiming system | 2 green LED lights |
| Indicator | Power indicator PWR, Network indicator LNK, Code reading indicator OK/NG, User indicator U1 |
| Dimension | Straight: 72.7 mm × 31.5 mm × 41 mm; Right-angle: 51.5 mm × 31.5 mm × 61 mm |
| Weight | 118 g |
| Ingress protection | IP65 |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | 10 Hz ~ 55 Hz, Full amplitude 1.5 mm, X, Y, Z directions, 2 h each |
| Shock resistance | 30 g / 11 ms, Half-sine wave, Six axes, 500 shocks per axis |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.27 kg |
