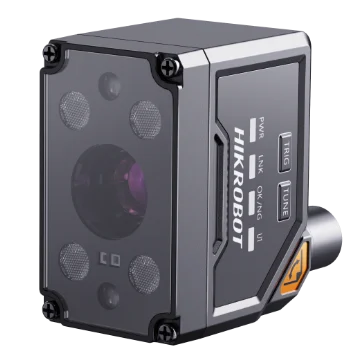

Hikrobot MV-ID2020RM-08M-RBN-U 2 MP rolling shutter, 8 mm focal length, Autofocus, Red light, USB, Semi-polarized smart code reader
Model MV-ID2020RM-08M-RBN-U
Hikrobot MV-ID2020RM-08M-RBN-U 2 MP rolling shutter, 8 mm focal length, Autofocus, Red light, USB, Semi-polarized smart code reader. Highly robust algorithm accurately reads difficult codes: damaged, skewed, low-contrast and laser-etched on metal Advanced integrated image processing, 4-zone independent light control and a range of optical accessories for sharper code detail
Datasheet (PDF, Chinese) - MV-ID2020RM-08M-RBN-UUser manual (PDF, Chinese) - MV-ID2020RM-08M-RBN-UCAD: 3D STEP + 2D DXF (ZIP) - MV-ID2020RM-08M-RBN-U
Features
- Highly robust algorithm accurately reads difficult codes: damaged, skewed, low-contrast and laser-etched on metal
- Advanced integrated image processing, 4-zone independent light control and a range of optical accessories for sharper code detail
- Modular assembly, rotatable tail cable, separable cables and multi-side mounting interfaces for tight spaces
- Multiple isolated I/O channels and industrial protocols for seamless integration with automation systems
- With the IDMVS client: autofocus, one-click tuning and more for fast, easy setup
Specifications
| Model | MV-ID2020RM-08M-RBN-U |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D codes: Code 39, Code 93, Code 128 (GS1-128 included), CodaBar, EAN 8, EAN 13, UPCA, UPCE; ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, and Pharmacode (one/two-track); 2D matrix codes: QR Code (GS1-QR included), Data Matrix (GS1-DM included), MicroQR, AZTEC, HanXin, Maxi code; Stacked codes: PDF417, MicroPDF417 |
| Max. frame rate | 50 fps |
| Max. reading speed | 80 codes/s |
| Sensor type | Rolling shutter, Mono, 1/2.8", 2.9 μm x 2.9 μm |
| Resolution | 1920 × 1080 |
| Exposure time | 60 μs to 100 ms (max. exposure time 59600 μs with HDR on) |
| Gain | 0 dB to 48 dB (max. gain 24 dB with HDR on) |
| Data interface | USB 2.0 (separate DC power required) |
| Communication protocol | USB 2.0 (with DC power supply) |
| Digital I/O | 17-pin M12 connector provides power and I/O, including isolated input (LineIn 0/1) × 2, isolated output (LineOut 3/4) × 2, RS-232 × 1. Supports device triggering and factory reset via pressing side button. |
| Power supply | 24 VDC |
| Power consumption | Avg.: 5 W @ 24 VDC (light source enabled); Max.: 12 W @ 24 VDC (light source enabled) |
| Focal length | 8 mm |
| Field of view | 38° (H) × 22° (V) |
| Lens mount | M12-Mount, Mechanical focus adjustable |
| Lens cap | Semi-polarizing lens cover, Clear optional, Full-polarized, ESD protective cover |
| Light source | Red light by default. White/blue/IR/UV/two-color (red/blue) light is optional. |
| Aiming system | 2 green LED lights |
| Indicator | Power indicator (PWR), network indicator (LNK), result indicator (OK/NG), user-defined indicator (U1) |
| Shell material | Aluminum alloy |
| Dimension | Straight angle: 72.7 mm × 31.5 mm × 41 mm (2.9" × 1.2" × 1.6"); Right angle: 51.5 mm × 31.5 mm × 61 mm (2.0" × 1.2" × 2.4") |
| Weight | 100 g |
| Ingress protection | IP65 |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | Device only: 10 Hz to 55 Hz, 1.5 mm full amplitude, 2 hours per axis (X/Y/Z) (IEC 60068-2-6:2007\GB/T 2423.10-2019) |
| Shock resistance | Device only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019) |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.24 kg |
