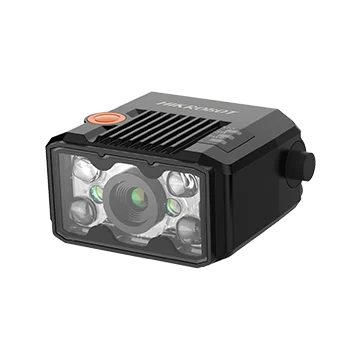

Hikrobot MV-ID2016M-16T-RBN 1.6MP Ultra-Compact Industrial Code Reader
Model MV-ID2016M-16T-RBN
Hikrobot MV-ID2016M-16T-RBN 1.6MP Ultra-Compact Industrial Code Reader. Supports high-speed focus adjustment for switching working distance. Compact design and small in size, and can be installed in narrow space.
Features
- Supports high-speed focus adjustment for switching working distance.
- Compact design and small in size, and can be installed in narrow space.
- Adopts LED aiming light to aim targets.
- Adopts multiple IO interfaces and plug-in power interface for easy wiring.
- Supports multiple communication protocols, including TCP Server, Serial, FTP, TCP Client, Profinet, Ethernet/IP, MELSEC/SLMP, Modbus, UDP, and Fins.
Specifications
| Model | MV-ID2016M-16T-RBN |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1-dimensional codes: Code 39, Code 93, Code 128 (include GS1-128), ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, Pharmacode; 2-dimensional codes: QR Code (include GS1-QR), Data Matrix (include GS1-DM), MicroQR, AZTEC, HanXin; Stacked codes: PDF 417 |
| Max. frame rate | 60 fps |
| Max. reading speed | 45 codes/sec |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1/2.9" |
| Resolution | 1408 × 1024 |
| Exposure time | 16 μs to 20000 μs |
| Gain | 0 dB to 15 dB |
| Mono | Mono |
| Communication protocol | TCP Server, Serial, FTP, TCP Client, Profinet, Ethernet/IP, MELSEC/SLMP, Modbus, UDP, and Fins |
| Data interface | Fast Ethernet (100 Mbit/s) |
| Digital I/O | 17-pin M12 connector provides power and I/O, including non-isolated input (Line 2) × 1, non-isolated output (Line 3) × 1, configurable bi-directional non-isolated I/O × 2 (Line 0/1), and RS-232 × 1.; Supports device triggering via pressing button on side. |
| Power supply | 12 VDC to 24 VDC |
| Max. power consumption | Approx. 4 W @ 12 VDC |
| Focal length | 16 mm |
| Lens mount | M12-mount |
| Working distance | 100 mm to 400 mm |
| Ambient illumination | 0 lux to 50000 lux |
| Aiming system | Orange LED |
| Indicator | Power indicator (PWR), network indicator (LNK), and status indicator (STS). |
| Dimension | 46 mm × 40 mm × 25 mm (1.8" × 1.6" × 1.0") |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Ingress protection | IP65 |
| Weight | Approx. 135 g (0.3 lb.) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Light source | Red |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.29 kg |
