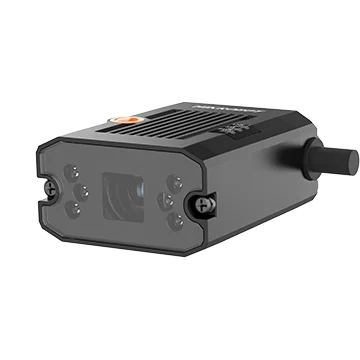

Hikrobot MV-ID2013M-16S-RBN-YAG 1.3 MP, 25 mm focal length, Manual focus, Red basic light, YAG-protected clear-window industrial code reader
Model MV-ID2013M-16S-RBN-YAG
Hikrobot MV-ID2013M-16S-RBN-YAG 1.3 MP, 25 mm focal length, Manual focus, Red basic light, YAG-protected clear-window industrial code reader. Ultra-compact: fits all kinds of machines and tight workstations External focus knob with visible focal plane
Datasheet (PDF, Chinese) - MV-ID2013M-16S-RBN-YAGUser manual (PDF, Chinese) - MV-ID2013M-16S-RBN-YAGCAD: 3D STEP + 2D DXF (ZIP) - MV-ID2013M-16S-RBN-YAG
Features
- Ultra-compact: fits all kinds of machines and tight workstations
- External focus knob with visible focal plane
- Rich I/O interface and plug-in power connector for easy field wiring
- Supports SmartSDK, TCP Server, Serial, FTP, TCP Client, Profinet, Melsec/SLMP, Ethernet/IP, Modbus, UDP, Fins and other protocols
Specifications
| Model | MV-ID2013M-16S-RBN-YAG |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1-dimensional codes: Code 39, Code 93, Code 128 (include GS1-128), ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, Pharmacode; 2-dimensional codes: QR Code (include GS1-QR), Data Matrix (include GS1-DM), MicroQR, AZTEC, HanXin; Stacked codes: PDF 417 |
| Max. frame rate | 60 fps |
| Max. reading speed | 45 codes/sec |
| Sensor type | CMOS, global shutter |
| Resolution | 1280 × 1024 |
| Exposure time | 35 μs ~ 1 sec |
| Gain | 0 ~ 15 dB |
| Data interface | Fast Ethernet(100 Mbit/s) |
| Communication protocol | 0 dB to 15 dB |
| Digital I/O | Mono |
| Power supply | 12 ~ 24 VDC |
| Power consumption | Fast Ethernet (100 Mbit/s) |
| Focal length | 16 mm |
| Field of view | 18° (H) × 14° (V) |
| Lens mount | Approx. 24 W @ 24 VDC |
| Ambient illumination | 0 ~ 50000 lux |
| Light source | Red |
| Aiming system | Not supported |
| Indicator | Power indicator (PWR), network indicator (LNK), and status indicator (STS) |
| Shell material | Metal |
| Dimension | 46 mm × 25 mm × 57.6 mm |
| Weight | 46 mm × 25 mm × 57.6 mm (1.8" × 1.0" × 2.3") |
| Ingress protection | IP65 |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | Approx. 215 g (0.5 lb.) |
| Shock resistance | 20% RH to 95% RH (no condensation) |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.52 kg |
