Fixed code readers

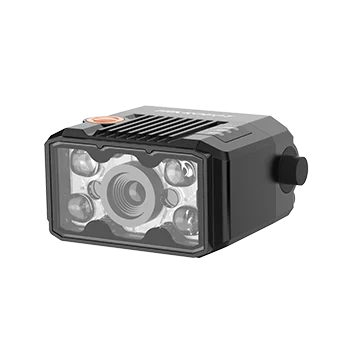

Hikrobot MV-ID2013M-06S-WBN 1.3 MP resolution, 06 mm focal length, White basic light, Clear lens cover, GigE manual-focus industrial code reader
Model MV-ID2013M-06S-WBN
Hikrobot MV-ID2013M-06S-WBN 1.3 MP resolution, 06 mm focal length, White basic light, Clear lens cover, GigE manual-focus industrial code reader. Ultra-compact: fits all kinds of machines and tight workstations Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions
Datasheet (PDF, Chinese) - MV-ID2013M-06S-WBNUser manual (PDF, Chinese) - MV-ID2013M-06S-WBNCAD: 3D STEP + 2D DXF (ZIP) - MV-ID2013M-06S-WBN
Features
- Ultra-compact: fits all kinds of machines and tight workstations
- Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions
- Rich I/O interface and plug-in power connector for easy field wiring
- Built-in LED aiming clearly marks the field of view for fast installation and setup
- External focus knob with visible focal plane
Specifications
| Model | MV-ID2013M-06S-WBN |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1-dimensional codes: Code 39, Code 93, Code 128, ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE; 2-dimensional codes: QR Code, Data Matrix |
| Max. frame rate | 60 fps |
| Max. reading speed | 45 codes/sec |
| Sensor type | Global shutter, mono, 1/2.7", 4 μm × 4 μm |
| Resolution | 1280 × 1024 |
| Exposure time | 35 μs ~ 1 sec |
| Gain | 0 ~ 15 dB |
| Data interface | Fast Ethernet(100 Mbit/s) |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Melsec/SLMP, Ethernet/IP, ModBus, UDP, Fins |
| Digital I/O | 17-pin M12 connector for power and I/O: 4 non-isolated bi-directional I/O (default: 2 inputs, 2 outputs), 1× RS-232; Device trigger via side button supported |
| Power supply | 12 ~ 24 VDC |
| Power consumption | Avg. power 4 W @ 12 to 24 VDC; Max. power 11 W @ 12 to 24 VDC |
| Focal length | 6.72 mm |
| Field of view | 41° (H) × 33° (V) |
| Lens mount | Approx. 4.6 W @ 5 VDC |
| Lens cap | 6.72 mm |
| Ambient illumination | 0 ~ 50000 lux |
| Light source | M10-mount, adjusting focus manually supported |
| Aiming system | Green LED |
| Indicator | Power indicator (PWR), network indicator (LNK), and status indicator (STS) |
| Shell material | Metal |
| Dimension | 46 mm × 38 mm × 25 mm |
| Weight | Approx. 160 g (0.4 lb.) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Ingress protection | IP65 |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | Approx. 215 g (0.5 lb.) |
| Shock resistance | 20% RH to 95% RH (no condensation) |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.32 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the ID2000 Series Industrial Code Reader series
