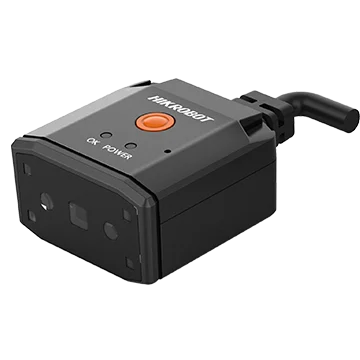

Hikrobot MV-ID2013EMI-03N-RBN Industrial Code Reader
Model MV-ID2013EMI-03N-RBN
Hikrobot MV-ID2013EMI-03N-RBN Industrial Code Reader. Compact design and small in size. Adopts multiple I/O interfaces and plug-in power interface.
Datasheet (PDF) - MV-ID2013EMI-03N-RBNUser manual (PDF) - MV-ID2013EMI-03N-RBNCAD: 3D STEP + 2D DXF (ZIP) - MV-ID2013EMI-03N-RBN
Features
- Compact design and small in size.
- Adopts multiple I/O interfaces and plug-in power interface.
- Adopts LED aiming light to help aim codes.
- Adopts buzzer and indicator for indicating device status.
- Supports one-click parameter adjustment for convenient operation.
- Supports light source control for flexible configuration.
Specifications
| Model | MV-ID2013EMI-03N-RBN |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, EAN8, EAN13, ITF 14, ITF 25, CodaBar, UPCA, UPCE; 2D codes: QR Code, Data Matrix, MicroQR, AZTEC, HanXin; Stacked codes: PDF417 |
| Max. frame rate | 50 fps |
| Max. reading speed | 30 codes/sec |
| Sensor type | CMOS, global shutter, mono, 1/4", 2.7 μm × 2.7 μm |
| Resolution | 1280 × 1024 |
| Exposure time | 60 μs to 6000 μs |
| Gain | 1 dB to 28 dB |
| Depth of field | Code 39 (5 mil): 40 mm to 120 mm; Code 128 (10 mil): 15 mm to 250 mm; EAN 13 (13 mil): 30 mm to 280 mm; QR Code (10 mil): 35 mm to 155 mm; QR Code (15 mil): 15 mm to 215 mm; QR Code (20 mil): 15 mm to 270 mm |
| Data interface | Fast Ethernet (100 Mbit/s), RS-232, DC terminal |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, UDP, Profinet, Ethernet/IP |
| Digital I/O | DB15 connector provides power and I/O, including opto-isolated input × 2 (Line 0/1), opto-isolated output × 2 (Line 3/4), RS-232 × 1.; Supports device triggering and factory reset via pressing button on side. |
| Power supply | 12 VDC to 24 VDC |
| Power consumption | Avg.: 2.5 W @ 12 VDC to 24 VDC; Max.: 5 W @ 12 VDC to 24 VDC |
| Focal length | 2.48 mm |
| Focus distance | 70 mm |
| Field of view | 70°(H) × 58°(V) |
| Lens mount | M5.5-mount |
| Ambient illumination | 0 lux to 10000 lux |
| Light source | Red |
| Aiming system | Green LED |
| Indicator | Power indicator (POWER), status indicator (OK/NG) |
| Shell material | PVC |
| Dimension | 45 mm × 43 mm × 25 mm (1.8" × 1.7" × 1.0") |
| Weight | Approx. 68.5 g (0.2 lb.) |
| Ingress protection | IP54 |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | Device only: 10 Hz to 55 Hz, 1.5 mm full amplitude, 2 hours per axis (X/Y/Z) (IEC 60068-2-6:2007\GB/T 2423.10-2019) |
| Shock resistance | Device only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019) |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.20 kg |
