Home / Cameras / 3D sensors / Line Scan 2.5D Inspection System

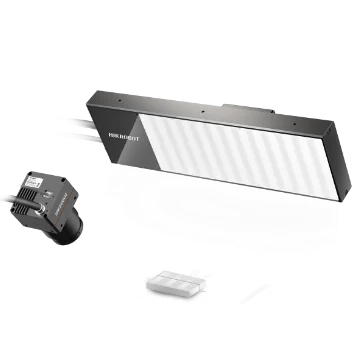

Hikrobot MV-HLVS-8K200-L30-GY Line-scan 2.5D, Resolution 8k, Sampling rate 200 kHz, Emitting surface length 300 mm, With gyroscope

3D sensors

Hikrobot MV-HLVS-8K200-L30-GY Line-scan 2.5D, Resolution 8k, Sampling rate 200 kHz, Emitting surface length 300 mm, With gyroscope

Model MV-HLVS-8K200-L30-GY

Hikrobot MV-HLVS-8K200-L30-GY Line-scan 2.5D, Resolution 8k, Sampling rate 200 kHz, Emitting surface length 300 mm, With gyroscope. A single shot outputs multiple result images, precisely detecting small bumps and dents, fine scratches, dirt, foreign matter, dull spots and other defects for combined inspection Effectively removes background interference and surface glare, sensitively capturing surface depth variations; suited to defect inspection on highly reflective and transparent objects

Price on request
2.20 kg shipping weight · Ships in 2-3 weeks
  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF, Chinese) - MV-HLVS-8K200-L30-GY

Features

  • A single shot outputs multiple result images, precisely detecting small bumps and dents, fine scratches, dirt, foreign matter, dull spots and other defects for combined inspection
  • Effectively removes background interference and surface glare, sensitively capturing surface depth variations; suited to defect inspection on highly reflective and transparent objects
  • Senses camera and light orientation and outputs angle values for faster setup
  • The 2.5D system works with the Vision Master algorithm development platform for simultaneous 2.5D imaging and defect recognition

Specifications

ModelMV-HLVS-8K200-L30-GY
BrandHikrobot
Pixel size7 μm × 7 μm
Resolution8192 × 2
Max. line rate200 kHz
Mono/colorMono
Pixel formatMono 8
Transmission interfaceXoFLink
Dimension414 mm × 122 mm × 56.2 mm
Emitting area dimension300 mm × 100 mm
ColorWhite
CommunicationGigE
Shipping weight (estimated)2.20 kg
Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the Line Scan 2.5D Inspection System series

ModelSizePriceAvailability
MV-HLVS-8K200-L308 MP Price on request 5 in stockView
MV-HLVS-16K100-L3016 MP Price on request 3 in stockView
MV-HLVS-4K200-L304 MP Price on request 5 in stockView
MV-HLVS-8K100-L308 MP Price on request 5 in stockView
MV-HLVS-8K100-L158 MP Price on request 3 in stockView
MV-HLVS-4K200-L154 MP Price on request 4 in stockView
MV-HLVS-8K200-L158 MP Price on request 5 in stockView
MV-HLVS-16K100-L1516 MP Price on request 5 in stockView
MV-HLVS-8K100-L608 MP Price on request 2 in stockView
MV-HLVS-8K200-L608 MP Price on request 5 in stockView
MV-HLVS-16K100-L6016 MP Price on request 4 in stockView
MV-HLVS-4K200-L604 MP Price on request 5 in stockView
MV-HLVS-4K200-L15-IR4 MP Price on request 2 in stockView
MV-HLVS-4K200-L30-IR4 MP Price on request 5 in stockView
MV-HLVS-8K200-L15-IR8 MP Price on request 2 in stockView
MV-HLVS-8K200-L30-IR8 MP Price on request 3 in stockView
MV-HLVS-4K200-L60-C3 Price on request 5 in stockView
MV-HLVS-4K200-L60-C2 Price on request 4 in stockView
MV-HLVS-8K200-L60-C2 Price on request 2 in stockView
MV-HLVS-16K100-L60-C2 Price on request 2 in stockView
