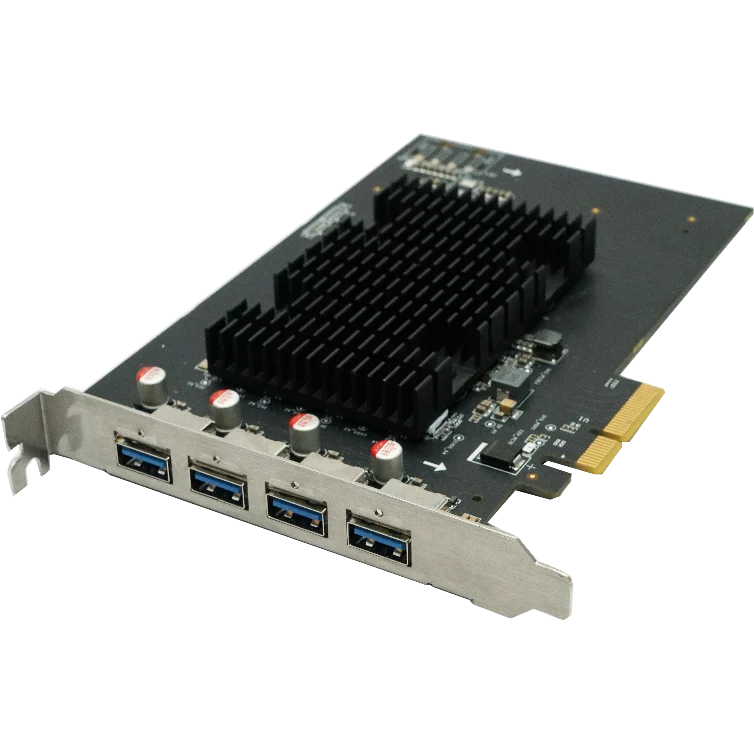

Hikrobot MV-GU2104 MV-GU2100 Series Quad USB3.0 Adaptor
Model MV-GU2104
Hikrobot MV-GU2104 MV-GU2100 Series Quad USB3.0 Adaptor. Adopts USB3.0 type-A interface. Max. transmission speed reaches 5 Gbps in USB3.0 mode theoretically.
Features
- Adopts USB3.0 type-A interface.
- Max. transmission speed reaches 5 Gbps in USB3.0 mode theoretically.
- Supports super speed transmission mode, and compatible with USB3.0, USB2.0, and USB1.1.
Specifications
| Model | MV-GU2104 |
|---|---|
| Brand | Hikrobot |
| Interconnect | PCI-E gen2 × 4 |
| Delivery bandwidth | 1720 MB/s (max. transmission bandwidth); 1600 MB/s (sustained transmission bandwidth) |
| Standard | USB 3.0 |
| Interface | USB3.0 type-A, female |
| Power output | Each channel provides 4.5 W @ 5 VDC at most |
| Camera type supported | USB industrial camera |
| Camera quantity supported | 4 at most |
| Camera connection speed | Max. 5 Gbps (the actual speed is 2.9 Gbps) |
| Stream | 4 |
| Pixel format | Mono 8/10/10Packed/12/12Packed; Bayer 8/10/10Packed/12/12Packed; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8 |
| Power consumption | Typ. 6 W (without USB power supply); Typ. 24 W (with USB power supply) |
| Dimension | 181.1 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9") |
| Weight | 160 g (0.4 lb.) |
| Temperature | Working temperature: 0 °C to 60 °C (32 °F to 140 °F); Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
| Humidity | 10% RH to 95% RH (no condensation) |
| Operating system | Windows 7/10/11, Linux |
| Certification | CE, RoHS |
| Shipping weight (estimated) | 0.32 kg |
