Hikrobot MV-GQ1001 Single-port 50 Gbps QSFP frame grabber
Model MV-GQ1001

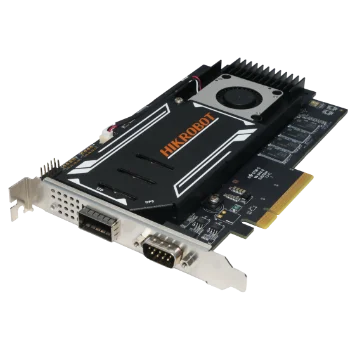

Hikrobot MV-GQ1001 Single-port 50 Gbps QSFP frame grabber. Single QSFP port with transmission bandwidth up to 50 Gbps Bus and channel indicators report frame grabber status in real time
Datasheet (PDF, Chinese) - MV-GQ1001User manual (PDF, Chinese) - MV-GQ1001CAD: 3D STEP + 2D DXF (ZIP) - MV-GQ1001
Features
- Single QSFP port with transmission bandwidth up to 50 Gbps
- Bus and channel indicators report frame grabber status in real time
- Rich I/O interface with multiple integrated inputs and outputs
- SDK provided for secondary development
Specifications
| Model | MV-GQ1001 |
|---|---|
| Brand | Hikrobot |
| On-board memory | 8 GB DDR4-RAM |
| Interconnect | PCI-E gen3 × 8 |
| Delivery bandwidth | 7800 MB/s (peak bandwidth), 6700 MB/s (sustained bandwidth) |
| Bus indicator | 1 |
| Standard | XoFLink |
| Interface | 1×QSFP28 |
| Camera type supported | QSFP28-type cameras |
| Camera quantity supported | 1 camera(s) (single card 50 Gbps, , dual card 100 Gbps) |
| Camera connection speed | 50 Gbps |
| Stream | 2 |
| Stream indicator | 1 pair(s) |
| Pixel format | Mono 8/10/12; Bayer 8/10; RGB 8 |
| I/O Type | 8 configurable inputs/outputs, Single-ended/differential compatible; Line 0/1/4/5/6/7: 3.3 to 12 V input, 3.3 to 24 V output; Line 2/3: 3.3 to 24 V input/output |
| Connector | DB9 and internal pin header |
| Power consumption | 18.5 W |
| Dimension | 181 mm × 126.3 mm × 21.6 mm |
| Temperature | Working temperature: 0 °C to 60 °C (32 °F to 140 °F); Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
| Humidity | 10% RH to 95% RH (no condensation) |
| Client software | MVS |
| Operating system | Windows 7/10/11, Ubuntu16.04 to 20.04 on Linux |
| Certification | CE, KC, RoHS |
| SFP+ module | 1 × QSFP28 |
| Shipping weight (estimated) | 0.38 kg |
