Frame grabbers

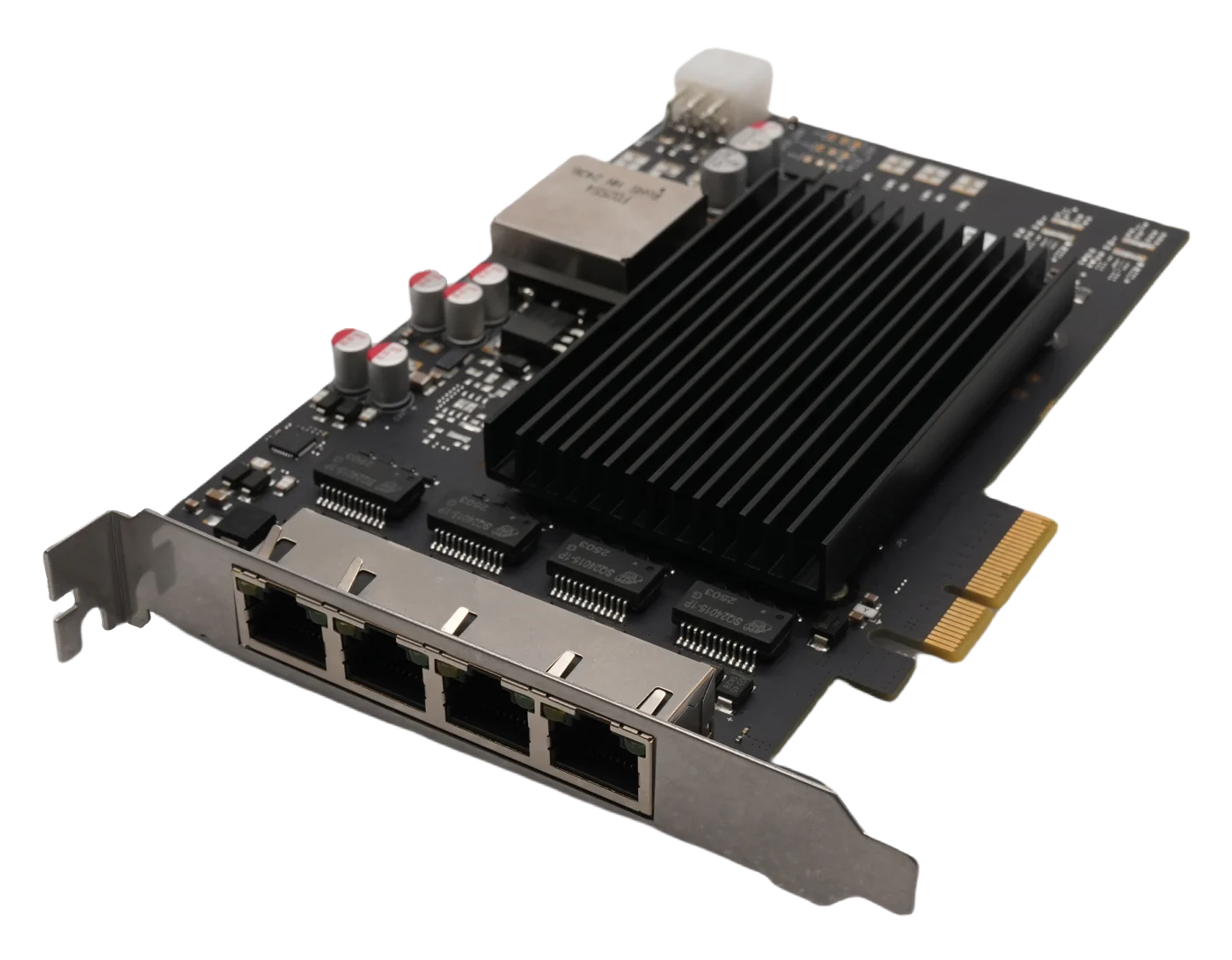

Hikrobot MV-GE4004P Quad 2.5G Ethernet Adaptor, POE
Model MV-GE4004P
Hikrobot MV-GE4004P Quad 2.5G Ethernet Adaptor, POE. Supports IEEE 802.3 protocol. Supports PCI-E gen2 × 4 bus interface.
Features
- Supports IEEE 802.3 protocol.
- Supports PCI-E gen2 × 4 bus interface.
- Adopts multiple independent 2.5 GigE POE ports.
- Supports 10/100/1000/2500 Mbps network adaptation.
- Complies with IEEE 802.3af standard, and each connector delivers up to 15.4 W of power.
- Supports jumbo frames up to 9 KB.
- Supports 3U and 4U chassis.
Specifications
| Model | MV-GE4004P |
|---|---|
| Brand | Hikrobot |
| Interconnect | PCI-E gen2 × 4 |
| Delivery bandwidth | 2000 MB/s (max. transmission bandwidth) |
| Standard | IEEE 802.3 |
| Interface | RJ45 × 2; RJ45 × 4 |
| Camera type supported | GigE industrial camera, 2.5 GigE industrial camera |
| Camera quantity supported | 2 at most; 4 at most |
| Camera connection speed | 10/100/1000/2500 Mbps |
| Stream | 2; 4 |
| Power consumption | 4 W (without POE), 6.1 W (without POE) |
| Dimension | 181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9") |
| Weight | Approx. 202 g (0.4 lb.); Approx. 210 g (0.5 lb.) |
| Temperature | Working temperature: 0 °C to 55 °C (32 °F to 131 °F); Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
| Humidity | 10% RH to 95% RH (no condensation) |
| Operating system | Windows 7/10/11, Ubuntu18.04 to 24.04 on 64-bit Linux |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.38 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guide
