Frame grabbers

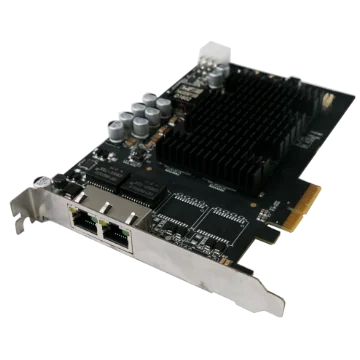

Hikrobot MV-GE2002P Dual-port PoE NIC, full height V2.0
Model MV-GE2002P
Hikrobot MV-GE2002P Dual-port PoE NIC, full height V2.0. Supports IEEE 802.3 Up to 4 GigE PoE ports with independent bandwidth
Features
- Supports IEEE 802.3
- Up to 4 GigE PoE ports with independent bandwidth
- Full-height bracket for 3U and 4U chassis
Specifications
| Model | MV-GE2002P |
|---|---|
| Brand | Hikrobot |
| Interconnect | PCI-E gen2 × 4 |
| Delivery bandwidth | 860 MB/s (max. transmission bandwidth); 800 MB/s (sustained transmission bandwidth) |
| Standard | IEEE 802.3 |
| Interface | 2 × RJ45 |
| Camera type supported | GigE industrial camera |
| Camera quantity supported | 2 at most |
| Camera connection speed | 10/100/1000 Mbps |
| Stream | 2 |
| Power consumption | 7.5 W (excl. PoE) |
| Dimension | 181 mm × 126.3 mm × 21.6 mm |
| Weight | 190 g |
| Temperature | Working temperature: 0 °C to 60 °C (32 °F to 140 °F); Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
| Humidity | 10% RH to 95% RH (no condensation) |
| Cooling mode | Natural cooling, Fanless heat sink |
| Operating system | Windows 7/10/11, Linux |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.37 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Ethernet Adaptors series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| MV-GE2002 | GigE | Price on request | 3 in stock | View |
| MV-GE2004P | GigE | Price on request | 4 in stock | View |
| MV-GE2004L V2.0 | GigE | Price on request | 5 in stock | View |
| MV-GE2202 | GigE | Price on request | 2 in stock | View |
| MV-GE2202P | GigE | Price on request | 3 in stock | View |
| MV-GE2204 | GigE | Price on request | 4 in stock | View |
| MV-GE2204P | GigE | Price on request | 4 in stock | View |
| MV-GE2004 | GigE | Price on request | 2 in stock | View |
| MV-GE2002L V2.0 | GigE | Price on request | 2 in stock | View |
