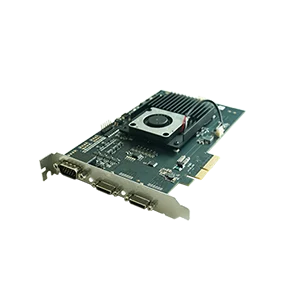

Hikrobot MV-GC1002-V2 CML FrameGrabber, with DB15 connector
Model MV-GC1002-V2
Hikrobot MV-GC1002-V2 CML FrameGrabber, with DB15 connector. Supports Camera Link protocol with two SDR connectors accessing up to 6.8 Gbps data transfer speed theoretically. Supports PoCL with each channel providing 4 W at most.
Datasheet (PDF) - MV-GC1002-V2User manual (PDF) - MV-GC1002-V2CAD: 3D STEP + 2D DXF (ZIP) - MV-GC1002-V2
Features
- Supports Camera Link protocol with two SDR connectors accessing up to 6.8 Gbps data transfer speed theoretically.
- Supports PoCL with each channel providing 4 W at most.
- Adopts multiple I/O connectors for input and output.
- Provides SDK and supports GenTL protocol for secondary development.
- Complies with Genlcam standard.
Specifications
| Model | MV-GC1002-V2 |
|---|---|
| Brand | Hikrobot |
| Configuration mode | Base, Medium, Full, 80-bit |
| Pixel clock | 20 MHz to 85 MHz |
| On-board memory | 1 GB DDR3-RAM |
| Interconnect | PCI-E gen2 × 4 |
| Delivery bandwidth | 1720 MB/s (max. transmission bandwidth); 1600 MB/s (sustained transmission bandwidth) |
| Indicator | 1 |
| Standard | Camera Link 2.1 |
| Interface | SDR × 2 |
| Power output | PoCL, each channel provides 4 W @ 12 VDC at most |
| Camera type supported | Camera Link industrial camera |
| Camera quantity supported | 2 at most |
| Camera connection speed | 6.8 Gbps |
| Stream | 2 |
| Stream indicator | 2 |
| Pixel format | Mono 8/10/12/16; Bayer 8/10/12/16; RGB 8, BGR 8 |
| I/O Type | Configurable input/output × 11, compatible with single-ended/differential and support cascading; Baffle I/O: Line 0 to Line 6 support 3.3 VDC to 24 VDC input/output; Pin header I/O: Line 7 to Line 10 support 3.3 VDC to 12 VDC input, and 3.3 VDC output |
| Connector | DB15 male connector, 9-pin header (2.54 mm interval, 2 × 5, 10 pin hole) |
| Power consumption | Typ. 7 W (without PoCL) |
| Dimension | 181 mm ×126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9") |
| Temperature | Working temperature: 0 °C to 60 °C (32 °F to 140 °F); Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
| Humidity | 10% RH to 95% RH (no condensation) |
| Client software | MVS |
| Operating system | Windows 7/10/11, Ubuntu16.04 to 22.04 on Linux |
| Certification | CE, RoHS, UL |
| Shipping weight (estimated) | 0.38 kg |
