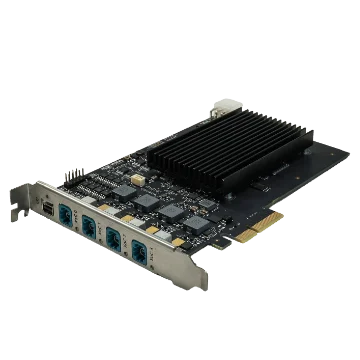

Hikrobot MV-GA1004 XoC 6G coaxial frame grabber, 4-channel, Base version
Model MV-GA1004
Hikrobot MV-GA1004 XoC 6G coaxial frame grabber, 4-channel, Base version. Supports the XoCLink coaxial transmission protocol, up to 6.4 Gbps per channel PoXoC power, up to 13 W per channel
Datasheet (PDF, Chinese) - MV-GA1004User manual (PDF, Chinese) - MV-GA1004CAD: 3D STEP + 2D DXF (ZIP) - MV-GA1004
Features
- Supports the XoCLink coaxial transmission protocol, up to 6.4 Gbps per channel
- PoXoC power, up to 13 W per channel
- Rich I/O interface with multiple integrated inputs and outputs
- SDK provided for secondary development
- Complies with the GenICam standard
Specifications
| Model | MV-GA1004 |
|---|---|
| Brand | Hikrobot |
| On-board memory | 1 GB DDR4-RAM |
| Interconnect | PCI-E gen3 × 4 |
| Delivery bandwidth | 3900 MB/s (peak bandwidth); 3350 MB/s (sustained bandwidth) |
| Bus indicator | 1 |
| Standard | XoCLink |
| Interface | 4 × MiniFAKRA |
| Power output | PoC, Up to 13 W @ 24 VDC per channel |
| Camera type supported | XoCLink industrial camera |
| Camera quantity supported | 4 at most |
| Camera connection speed | 6.4 Gbps |
| Stream | 4 |
| Stream indicator | 4 |
| Pixel format | Mono 8/10/12/16; Bayer 8/10/12/16; RGB 8, BGR 8 |
| I/O Type | Provides 24 I/O connectors, including opto-isolated input × 4 (4.5 VDC to 28 VDC), opto-isolated output × 4 (4.5 VDC to 28 VDC), RX422 input × 4, TX422 output × 4, TTL input × 4, and TTL output × 4 |
| Connector | I/O on bracket: Mini-DP, female, 20-pin; I/O on PCB: 9-pin header (2.54 mm pitch, 2 x 5, 10 pin blind holes) |
| Power consumption | 9.7 W (excluding PoC) |
| Dimension | 181 mm × 126.3 mm × 21.6 mm |
| Temperature | Working temperature: 0 °C to 55 °C (32 °F to 131 °F); Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
| Humidity | 10% RH to 95% RH (no condensation) |
| Client software | MVS |
| Operating system | Windows 7/10/11, Ubuntu16.04 to 20.04 on Linux |
| Certification | RoHS, CE, KC |
| Shipping weight (estimated) | 0.38 kg |
