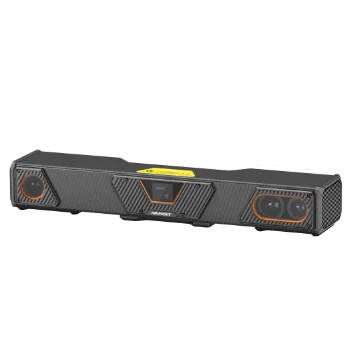

Hikrobot MV-DLS700U-13 Laser galvanometer stereo camera
Model MV-DLS700U-13
Hikrobot MV-DLS700U-13 Laser galvanometer stereo camera. Custom optical system for excellent image quality Highly uniform laser for complete, detailed point clouds
Datasheet (PDF, Chinese) - MV-DLS700U-13User manual (PDF, Chinese) - MV-DLS700U-13CAD: 3D STEP + 2D DXF (ZIP) - MV-DLS700U-13
Features
- Custom optical system for excellent image quality
- Highly uniform laser for complete, detailed point clouds
- Multi-core parallel processing architecture for high efficiency
- Synchronized, aligned RGB and depth maps for fast, easy secondary development
- High-strength carbon fiber design for high stability
Specifications
| Model | MV-DLS700U-13 |
|---|---|
| Brand | Hikrobot |
| Near field of view | 700 mm × 600 mm@1300 mm |
| Far field of view | 1200 mm × 1100 mm@2100 mm |
| Typical field of view | 1000 mm × 900 mm@1700 mm |
| Clearance distance (CD) | 1300 mm |
| Measurement range (MR) | 800 mm |
| Repeatability (Z-axis)* | 0.08 mm@1800 mm1 |
| VDI/VDE accuracy | 0.15 mm@1800 mm2 |
| Resolution | 4000 × 3000 @ RGB image; 2448 × 2048 @ depth map |
| Acquisition time | 0.4 ~ 0.9 s |
| Image output latency | 1.0 ~ 1.7 s |
| Data type | Raw image (mono + color), Depth map, RGB-D image |
| Data interface | Gigabit Ethernet(1000Mbit/s) |
| Digital I/O | 12-pin M12 connector provides power supply and I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7) |
| Power supply | 24 VDC |
| Power consumption | 15 W@24 V DC |
| Dimension | 525.7mm × 81.8 mm × 107.4 mm |
| Weight | Approx. 2.35 kg |
| Ingress protection | IP65 |
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% to 85% RH (non-condensing) |
| Laser safety class | Class 2 |
| Wavelength | 638 nm |
| Client software | HiViewer, RobotPilot |
| Operating system | Windows 7/10 32/64bits, Windows 11 64bits |
| Certification | RoHS |
| Shipping weight (estimated) | 3.39 kg |
