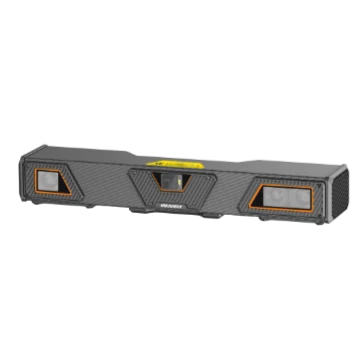

Hikrobot MV-DLS1400M-15L Laser galvanometer stereo camera
Model MV-DLS1400M-15L
Hikrobot MV-DLS1400M-15L Laser galvanometer stereo camera. Custom optical system for excellent image quality Multi-line, highly uniform laser with strong ambient-light immunity for complete, detailed point clouds
Datasheet (PDF, Chinese) - MV-DLS1400M-15LUser manual (PDF, Chinese) - MV-DLS1400M-15LCAD: 3D STEP + 2D DXF (ZIP) - MV-DLS1400M-15L
Features
- Custom optical system for excellent image quality
- Multi-line, highly uniform laser with strong ambient-light immunity for complete, detailed point clouds
- Multi-core parallel processing architecture for high efficiency
- Synchronized, aligned RGB and depth maps for fast, easy secondary development
- High-strength carbon fiber design for high stability
- Extra-wide field of view for long-distance applications
Specifications
| Model | MV-DLS1400M-15L |
|---|---|
| Brand | Hikrobot |
| Near field of view | 1300 mm × 1100 mm@1500 mm |
| Far field of view | 2940 mm × 2570 mm@3500 mm |
| Clearance distance (CD) | 1500 mm |
| Typical field of view | 2200 mm × 1840 mm@2500 mm |
| Measurement range (MR) | 2000 mm |
| Resolution | 4000 × 3000 @ RGB image; 1920 × 1536 @ depth map |
| Repeatability (Z-axis)* | 0.2 mm@2500 mm |
| VDI/VDE accuracy | 0.3 mm@2500 mm |
| Data type | Raw image (mono + color), Depth map, RGB-D image |
| Acquisition time | 0.9 s ~ 1.4 s |
| Image output latency | 1.4 s ~ 1.9 s |
| Data interface | Gigabit Ethernet(1000 Mbit/s) |
| Digital I/O | 12-pin M12 connector provides power supply and I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7) |
| Power supply | 24 V DC |
| Power consumption | 17 W@24 V DC |
| Dimension | 525.7 mm × 81.8 mm × 107.4 mm |
| Weight | Approx. 2.6 kg |
| Ingress protection | IP65 |
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% to 85% RH (non-condensing) |
| Laser safety class | Class 3R |
| Wavelength | 638 nm |
| Client software | RobotPilot, HiViewer |
| Operating system | Windows 7/10 32/64 bits, Windows 11 64 bits |
| Certification | RoHS |
| Shipping weight (estimated) | 3.74 kg |
