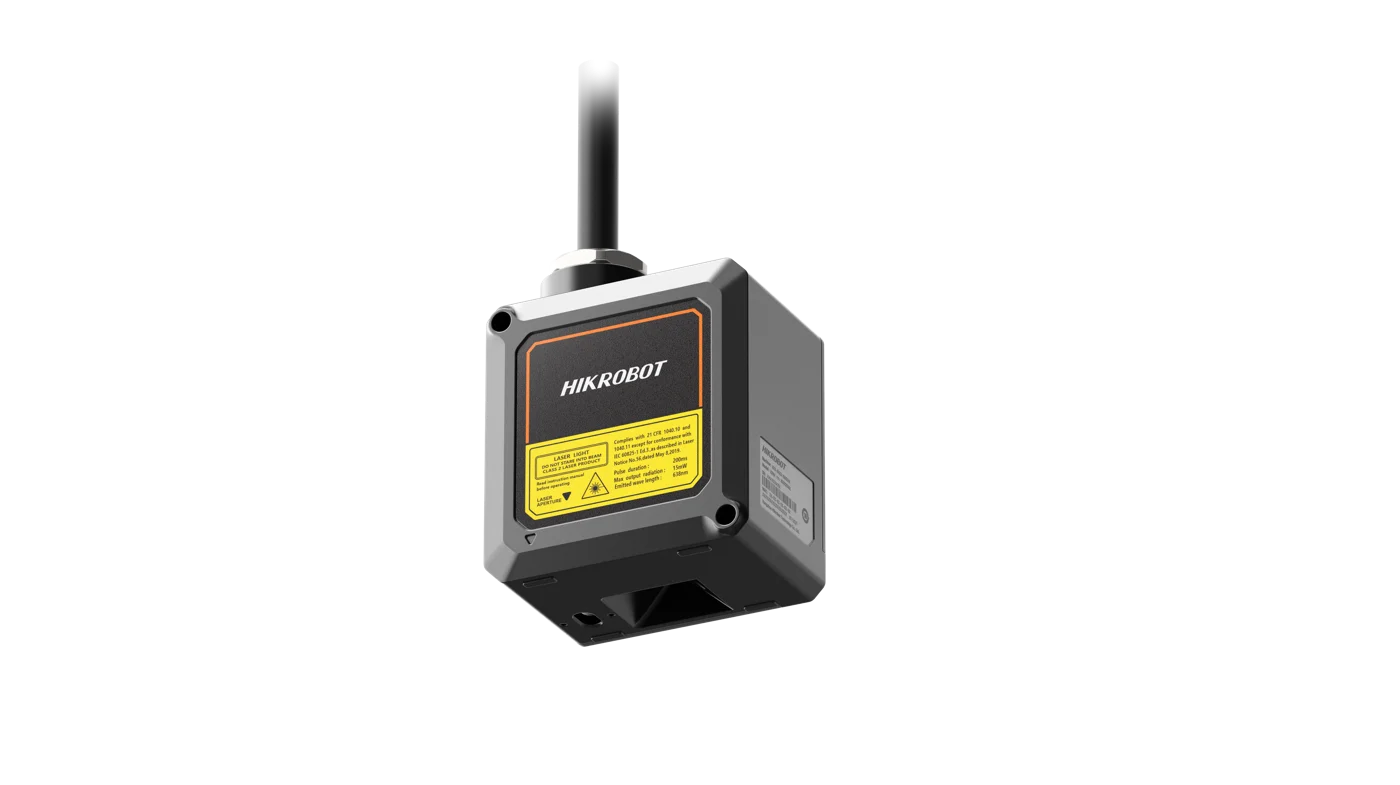

Hikrobot MV-DD020-03H Point laser displacement sensing
Model MV-DD020-03H
Hikrobot MV-DD020-03H Point laser displacement sensing. Ultra-high-speed chip with frame rates up to 592 kHz Sub-pixel algorithms deliver sub-micron precision
Datasheet (PDF, Chinese) - MV-DD020-03HUser manual (PDF, Chinese) - MV-DD020-03HCAD: 3D STEP + 2D DXF (ZIP) - MV-DD020-03H
Features
- Ultra-high-speed chip with frame rates up to 592 kHz
- Sub-pixel algorithms deliver sub-micron precision
- Custom optical system for more stable imaging
- Automatic light control for simpler setup
- Multiple filter modes for more flexible applications
- Multiple calculation logic options for more intuitive inspection
- Result output for more convenient control
Specifications
| Model | MV-DD020-03H |
|---|---|
| Brand | Hikrobot |
| Spot diameter | Ф55 μm |
| Reference distance | 20 mm |
| Measurement range (Z-axis) | 6 mm |
| Repeatability (Z-axis)* | 0.05 μm @ standard gauge block measured with the sensor on an optical table |
| Linearity Z-axis (±% of MR) | 0.03 |
| Trigger mode | External encoder trigger |
| Sampling frequency | 1 kHz, 2 kHz, 5 kHz, 10 kHz, 20 kHz, 50 kHz, 88 kHz, 200 kHz, 400 kHz, 592 kHz (10 selectable levels) |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 12-pin M12 connector for power and I/O, Includes 2 digital signal inputs, 4 digital signal outputs, 1 analog output (voltage 0 to 10 V or current 4 to 20 mA) |
| Power supply | 24 VDC |
| Power consumption | 5 W@24 VDC |
| Installation method | Diffuse reflection |
| Dimension | 62 mm × 60 mm × 39 mm (excl. SR cable) |
| Weight | Approx. 320 g (0.7 lb.) |
| Ingress protection | IP67 |
| Temperature | Operating temperature: 0°C to 45°C, Storage temp.: -30 °C to 80 °C; Operating temperature: 0 °C to 45 °C, Storage temp.: -30 °C to 80 °C; 12→34; 12 → 34 |
| Humidity | 20% RH to 85% RH (no condensation) |
| Laser safety class | 660 nm |
| Client software | Point laser client software |
| Operating system | Windows 7/10/11 64bits |
| Shipping weight (estimated) | 0.55 kg |
