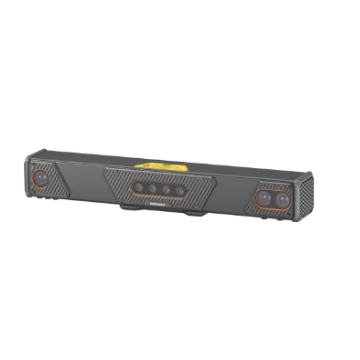

Hikrobot MV-DB1300A V2.0 Multiple DOE Speckle Structured Light Stereo Cameras
Model MV-DB1300A V2.0
Hikrobot MV-DB1300A V2.0 Multiple DOE Speckle Structured Light Stereo Cameras. Customized optical system with built-in high-precision deep fusion algorithm for higher image quality. Supports multiple exposure modes and adopts narrow-band filters for stronger environment adaptability.
Datasheet (PDF) - MV-DB1300A V2.0User manual (PDF) - MV-DB1300A V2.0CAD: 3D STEP + 2D DXF (ZIP) - MV-DB1300A V2.0
Features
- Customized optical system with built-in high-precision deep fusion algorithm for higher image quality.
- Supports multiple exposure modes and adopts narrow-band filters for stronger environment adaptability.
- Supports synchronized output of RGB images and depth images for secondary development.
- Adopts high-strength carbon fiber design with IP65 rating, ensuring stability.
- Supports large field of view for applications such as unstacking and palletizing or volume measurement of large items.
Specifications
| Model | MV-DB1300A V2.0 |
|---|---|
| Brand | Hikrobot |
| Near field of view | 870 mm × 860 mm @ 1100 mm |
| Typical field of view | 2000 mm × 1600 mm @ 2100 mm |
| Far field of view | 3340 mm× 2500 mm @ 3200 mm |
| Clearance distance (CD) | 1100 mm |
| Measurement range (MR) | 2100 mm |
| Repeatability (Z-axis)* | 1.5 mm @ 2100 mm |
| Resolution | RGB: 3072 × 2048; Depth: 1536 × 1024 |
| Data type | Original image (mono and color images), depth image, RGB-D image |
| Image output delay | 1.2 s to 1.5 s |
| Data interface | Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin M12 interface provides power and I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7) |
| Power supply | 24 VDC |
| Power consumption | Typ. 10 W @ 24 VDC |
| Dimension | 507 mm × 79.8 mm × 99.9 mm (20.0" × 3.1" × 3.9") |
| Weight | Approx. 1.59 kg (3.5 lb.) |
| Ingress protection | IP65 |
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Laser safety class | Class 3R |
| Wavelength | 850 nm |
| Client software | HiViewer, RobotPilot |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 |
| Certification | RoHS |
| Shipping weight (estimated) | 2.33 kg |
