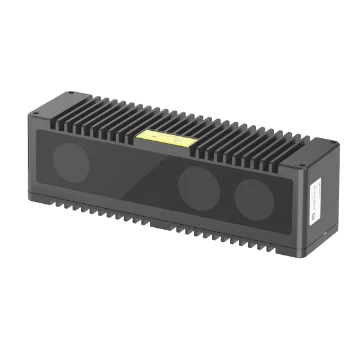

Hikrobot MV-DB12SME RGBD smart stereo camera
Model MV-DB12SME
Hikrobot MV-DB12SME RGBD smart stereo camera. High-performance sensor with energy-efficient laser module delivers stable millimeter-accuracy depth maps AI hardware core supports custom deep-learning models
Datasheet (PDF, Chinese) - MV-DB12SMEUser manual (PDF, Chinese) - MV-DB12SMECAD: 3D STEP + 2D DXF (ZIP) - MV-DB12SME
Features
- High-performance sensor with energy-efficient laser module delivers stable millimeter-accuracy depth maps
- AI hardware core supports custom deep-learning models
- Train your own deep-learning models on the AI training platform and import them for use
- Factory-calibrated intrinsics and multi-platform SDK for fast, easy secondary development
- Synchronized, aligned RGB and depth map output reduces host system load
- Narrow-band filter for stronger interference resistance
- IP65 rating: industrial-grade dust and water protection
Specifications
| Model | MV-DB12SME |
|---|---|
| Brand | Hikrobot |
| Near field of view | 580 mm × 480 mm |
| Far field of view | 2400 mm × 1800 mm |
| Clearance distance (CD) | 500 mm |
| Measurement range (MR) | 1500 mm |
| Depth image detection accuracy | Z:4mm@ 1m; 8mm@ 2m |
| Scan frame rate | RGB-Depth synchronized output:; 20 fps@1536 × 1280; 30 fps@768 × 640 |
| Data type | Raw image (mono + color), Depth map, RGB-D image, Instance segmentation results |
| Laser safety class | Class 1 |
| Data interface | Gigabit Ethernet(1000Mbit/s) |
| Digital I/O | 12-pin M12 connector provides power supply and I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7) |
| Power supply | 12 ~ 24 VDC |
| Power consumption | 6.76 W@24 VDC |
| Dimension | 184 mm × 55 mm × 53 mm |
| Weight | Approx. 1 kg (2.2 lb.) |
| Ingress protection | IP65 |
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Client software | HiViewer |
| Operating system | 32/64-bit Windows 7/10 |
| Shipping weight (estimated) | 1.50 kg |
