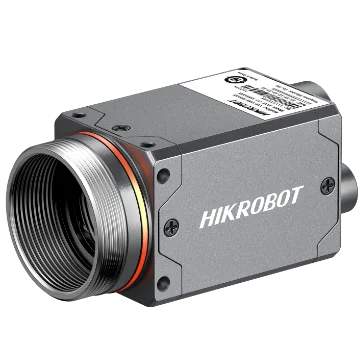

Hikrobot MV-CT120G-9GM01-MAX-25L-WBC 12 MP GigE area scan camera, Gen 3, Mono, MAX, 25 mm liquid lens, White basic light, Standard cover
Model MV-CT120G-9GM01-MAX-25L-WBC
Hikrobot MV-CT120G-9GM01-MAX-25L-WBC 12 MP GigE area scan camera, Gen 3, Mono, MAX, 25 mm liquid lens, White basic light, Standard cover. PRO and MAX versions feature fully waterproof connectors PRO and MAX versions feature precise temperature control for fast thermal equilibrium
Datasheet (PDF, Chinese) - MV-CT120G-9GM01-MAX-25L-WBCUser manual (PDF, Chinese) - MV-CT120G-9GM01-MAX-25L-WBCCAD: 3D STEP + 2D DXF (ZIP) - MV-CT120G-9GM01-MAX-25L-WBC
Features
- PRO and MAX versions feature fully waterproof connectors
- PRO and MAX versions feature precise temperature control for fast thermal equilibrium
- PRO and MAX color versions feature multispectral fusion with automatic color correction
- MAX version integrates lens and light control: lens focusing and lighting control in one unit
- Gigabit Ethernet interface: up to 100 m transmission without a repeater
- Compatible with GigE Vision V2.0 and the GenICam standard for seamless integration with third-party software
Specifications
| Model | MV-CT120G-9GM01-MAX-25L-WBC |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Stacked BSI |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1.1” |
| Resolution | 4096 × 3000 |
| Dynamic range | 67.2 dB |
| SNR | 44.2 dB |
| Gain | 0 dB ~ 12 dB |
| Exposure time | UltraShort exposure mode: 10 μs to 19 μs; Standard exposure mode: 20 μs to 10 sec |
| Exposure mode | Auto exposure supported, Manual exposure, One-shot exposure mode, Trigger Width and Trigger Controlled supported |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 8-pin M8 A-coded connector for power and I/O: 1 opto-isolated input (Line 0), 1 opto-isolated output (Line 1), 1 bi-directional configurable non-isolated I/O (Line 2) |
| Power supply | 9 VDC to 24 VDC, supports PoE |
| Lens mount | C-Mount |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | Windows 7/10 32/64bits, Windows 11 64bits, Linux 32/64bits |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.45 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the CT Series GigE Area Scan Cameras series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| MV-CT2MG0120/G/NN/NN | 12.3 MP, 1.1", GigE, Mono | Price on request | 2 in stock | View |
| MV-CT2CG0120/G/NN/NN | 12.3 MP, 1.1", GigE, Color | Price on request | 5 in stock | View |
| MV-CT2MG0120/G/16LC/WN | 12.3 MP, 1.1", GigE, Mono | Price on request | 2 in stock | View |
| MV-CT2CG0120/G/16LC/WN | 12.3 MP, 1.1", GigE, Color | Price on request | 2 in stock | View |
| MV-CT120G-9GM01-PRO | 12.3 MP, GigE, Mono | Price on request | 5 in stock | View |
| MV-CT120G-9GC01-MAX | 12.3 MP, GigE, Color | Price on request | 5 in stock | View |
| MV-CT120G-9GM01-BASE | 12.3 MP, GigE, Mono | Price on request | 2 in stock | View |
| MV-CT120G-9GM01-MAX | 12.3 MP, GigE, Mono | Price on request | 4 in stock | View |
| MV-CT120G-9GC01-PRO | 12.3 MP, GigE, Color | Price on request | 4 in stock | View |
| MV-CT120G-9GC01-BASE | 12.3 MP, GigE, Color | Price on request | 3 in stock | View |
| MV-CT120G-9GM01-MAX-16L-WBC | 12.3 MP, GigE, Mono | Price on request | 4 in stock | View |
| MV-CT120G-9GC01-MAX-16L-WBC | 12.3 MP, GigE, Color | Price on request | 3 in stock | View |
| MV-CT0MG0120/R/NN/NN | 12.4 MP, 1/1.56", GigE, Mono | Price on request | 3 in stock | View |
| MV-CT0CG0120/R/NN/NN | 12.4 MP, 1/1.56", GigE, Color | Price on request | 4 in stock | View |
| MV-CT1MG0120/R/NN/NN | 12.4 MP, 1/1.56", GigE, Mono | Price on request | 2 in stock | View |
| MV-CT1CG0120/R/NN/NN | 12.4 MP, 1/1.56", GigE, Color | Price on request | 5 in stock | View |
| MV-CT2MG0120/R/NN/NN | 12.4 MP, 1/1.56", GigE, Mono | Price on request | 5 in stock | View |
| MV-CT2CG0120/R/NN/NN | 12.4 MP, 1/1.56", GigE, Color | Price on request | 3 in stock | View |
| MV-CT120R-9GM01-MAX | 12.4 MP, GigE, Mono | Price on request | 3 in stock | View |
| MV-CT120R-9GM01-PRO | 12.4 MP, GigE, Mono | Price on request | 3 in stock | View |
| MV-CT120R-9GC01-BASE | 12.4 MP, GigE, Color | Price on request | 4 in stock | View |
| MV-CT120R-9GC01-MAX | 12.4 MP, GigE, Color | Price on request | 3 in stock | View |
| MV-CT120R-9GM01-BASE | 12.4 MP, GigE, Mono | Price on request | 3 in stock | View |
| MV-CT120R-9GC01-PRO | 12.4 MP, GigE, Color | Price on request | 5 in stock | View |
See all 138 models in the CT Series GigE Area Scan Cameras series
