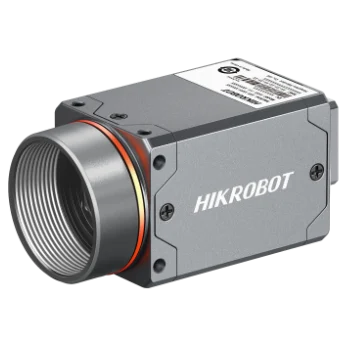

Hikrobot MV-CT0CG0060/R/NN/NN 6MP Area Scan Camera, 3rd Gen., GigE, Color, BASE
Model MV-CT0CG0060/R/NN/NN
Hikrobot MV-CT0CG0060/R/NN/NN 6MP Area Scan Camera, 3rd Gen., GigE, Color, BASE. The devices with PRO version and MAX version support waterproof connector. The devices with PRO version and MAX version adopt precision temperature control design for fast heat balance.
Datasheet (PDF) - MV-CT0CG0060/R/NN/NNUser manual (PDF) - MV-CT0CG0060/R/NN/NNCAD: 3D STEP + 2D DXF (ZIP) - MV-CT0CG0060/R/NN/NN
Features
- The devices with PRO version and MAX version support waterproof connector.
- The devices with PRO version and MAX version adopt precision temperature control design for fast heat balance.
- The color devices with PRO version and MAX version support auto color correction based on multi-spectral fusion technology.
- The device with MAX version integrates lens and light source, enabling lens focusing and light source control.
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Specifications
| Model | MV-CT0CG0060/R/NN/NN |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, rolling shutter |
| Sensor model | Sony IMX178 |
| Pixel size | 2.4 μm × 2.4 μm |
| Sensor size | 1/1.8" |
| Resolution | 3072 × 2048 |
| Max. frame rate | 19.5 fps @ 3072 × 2048 Bayer RG 8 |
| Dynamic range | 71.3 dB |
| SNR | 41.3 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | 25 μs to 3.1 sec |
| Exposure mode | Off/Once/Continuous exposure mode, supports Rolling and Global Reset |
| Pixel format | Mono 8, ; Bayer RG 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, ; RGB 8, BGR 8 |
| Mono/color | Color |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Data interface type | RJ45 connector |
| Control interface | Not supported |
| Digital I/O | 8-pin M8 A-Code aviation connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports PoE |
| Power consumption | Typ. 1.5 W @ 12 VDC |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 116 g (0.3 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.26 kg |
