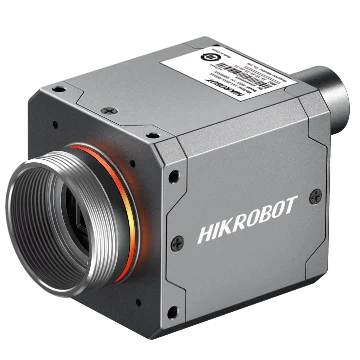

Hikrobot MV-CT016G-78GC01-MAX 1.6 MP GigE area scan camera, Gen 3, Color, MAX
Model MV-CT016G-78GC01-MAX
Hikrobot MV-CT016G-78GC01-MAX 1.6 MP GigE area scan camera, Gen 3, Color, MAX. PRO and MAX versions feature fully waterproof connectors PRO and MAX versions feature precise temperature control for fast thermal equilibrium
Datasheet (PDF, Chinese) - MV-CT016G-78GC01-MAXUser manual (PDF, Chinese) - MV-CT016G-78GC01-MAXCAD: 3D STEP + 2D DXF (ZIP) - MV-CT016G-78GC01-MAX
Features
- PRO and MAX versions feature fully waterproof connectors
- PRO and MAX versions feature precise temperature control for fast thermal equilibrium
- PRO and MAX color versions feature multispectral fusion with automatic color correction
- MAX version integrates lens and light control: lens focusing and lighting control in one unit
- Gigabit Ethernet interface: up to 100 m transmission without a repeater
- Compatible with GigE Vision V2.0 and the GenICam standard for seamless integration with third-party software
Specifications
| Model | MV-CT016G-78GC01-MAX |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Stacked BSI |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1/2.9” |
| Resolution | 1440 × 1080 |
| Max. frame rate | 180 fps @ 1440 × 1080 Bayer GB 8 (lossless compression on) |
| Dynamic range | 68.3 dB |
| SNR | 44 dB |
| Gain | 0 dB ~ 24 dB |
| Exposure time | 23 μs ~ 10 sec |
| Exposure mode | Auto exposure supported, Manual exposure, One-shot exposure mode, Trigger Width and Trigger Controlled supported |
| Mono/color | Color |
| Pixel format | Mono 8; Bayer GB 8/10/10Packed/12/12Packed; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Data interface type | 8-pin M12 X-coded waterproof connector |
| Console interface | 8-pin M12 A-coded waterproof connector |
| Digital I/O | 8-pin M8 A-coded connector for power and I/O: 1 opto-isolated input (Line 0), 1 opto-isolated output (Line 1), 1 bi-directional configurable non-isolated I/O (Line 2) |
| Power supply | 9 VDC to 24 VDC, supports PoE |
| Power consumption | 1.7 W @ 24 VDC (fast thermal balance off, external devices not controlled) |
| Lens mount | C-Mount |
| Dimension | 42 mm × 42 mm × 43 mm |
| Weight | Approx. 120 g (0.3 lb.) |
| Ingress protection | IP67 (with lens, , cover and cables properly installed) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | Windows 7/10 32/64bits, Windows 11 64bits, Linux 32/64bits |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.27 kg |
